WSV06L71

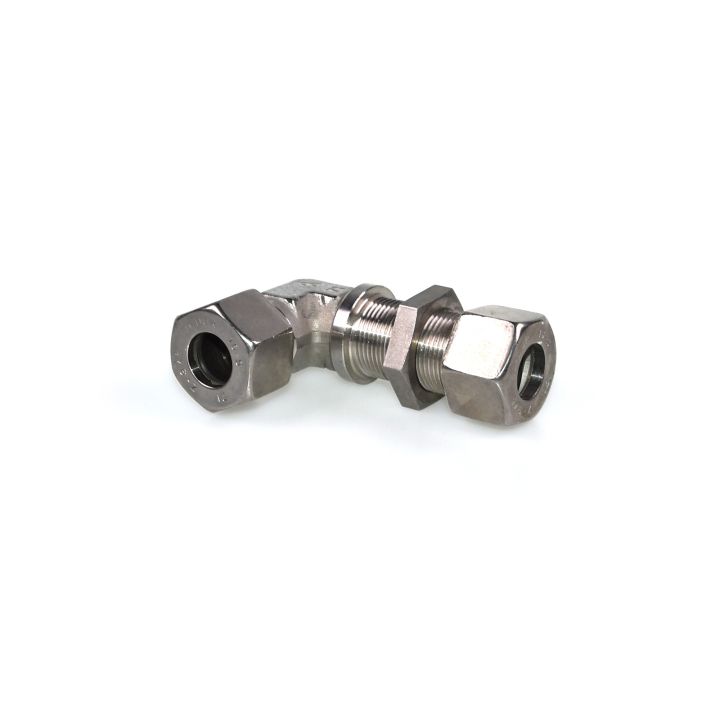

Bulkhead elbow - 06L cone end, complete with nut and ring, stainless steel
Login to see prices and stocks
  • Fast order processing
  • All products in stock
  • 24/7 Support
  • Questions? Call +31(0)10 - 479 15 11

More information about WSV06L71

Partnumber
WSV06L71
Brand
Ermeto
Manufacturer
Parker Hannifin
Partnumber Parker
WSV06L71
Material
Stainless Steel 1.4571
Series
Light Series
Tubesize
06L - M12×1.5
Tubesize II
06L - M12×1.5
Shape
Bulkhead elbow - EO 24° cone end
Type
Complete with nut and ring
Working Pressure (BAR)
315
Weight (KG)
0.076000
Customs Tariff Number
73072290
Country of Manufacture
Germany
Box Qty
5
Sales Unit
Piece

Details of the WSV06L71

The main function of Ermeto DIN tube to tube high pressure hydraulic tube fittings is to connect different numbers of tubes. This broad range of Ermeto DIN tube to tube high pressure hydraulic tube fittings, types G, GR, W, T, TR, K, SV, up to WSV is available in steel with Cr(VI)-free surfaces and in a stainless steel version. Depending on the specific application, the fittings can be delivered with cutting ring (EO-PSR or DPR) or elastomeric seal (EO-2).

Markets:

  • Automotive
  • Defence
  • Energy
  • Environment
  • Industrial
  • Infrastructure
  • Machine Tools
  • Material Handling
  • Mobile
  • Oil and Gas
  • Power Generation
  • Process
  • Transportation
  • Water

Applications:

  • Suitable for general hydraulic applications.

Features/ benefits:

  • High corrosion resistance: The Cr(VI)-free surface treatment gives an average corrosion resistance of more than 500 hours to white rust. This attribute helps to extends the life cycle of the fittings.
  • Stainless Steel surface: Ermeto DIN tube to tube high pressure hydraulic tube fittings, stainless steel version, have a high corrosion resistance to aggressive media and environmental influences, also a higher temperature resistance, than steel. Thes features extend the range of applications.
  • High pressure: Ermeto DIN tube to tube high pressure hydraulic tube fittings can be used in applications of up to 800 bar (S series) and 500 bar (L series), so that the fittings can be used in a wide range of applications.
