692 /692PU - Medium-Pressure Elite Compact hose - Constant pressure, tight bend radius

Items 1-24 of 27

Page
12 24 36
  1. 0323-04
    0323-04
    Login to see prices and stocks
  2. 0323-04-04
    0323-04-04
    Login to see prices and stocks
  3. 0323-05
    0323-05
    Login to see prices and stocks
  4. 0323-06
    0323-06
    Login to see prices and stocks
  5. 0323-06-06
    0323-06-06
    Login to see prices and stocks
  6. 0323-08
    0323-08
    Login to see prices and stocks
  7. 0323-10
    0323-10
    Login to see prices and stocks
  8. 0323-12
    0323-12
    Login to see prices and stocks
  9. 0692-04
    0692-04
    Login to see prices and stocks
  10. 0692-04-04
    0692-04-04
    Login to see prices and stocks
  11. 0692-05
    0692-05
    Login to see prices and stocks
  12. 0692-05-05
    0692-05-05
    Login to see prices and stocks
  13. 0692-06
    0692-06
    Login to see prices and stocks
  14. 0692-06-06
    0692-06-06
    Login to see prices and stocks
  15. 0692-08
    0692-08
    Login to see prices and stocks
  16. 0692-08-08
    0692-08-08
    Login to see prices and stocks
  17. 0692-10
    0692-10
    Login to see prices and stocks
  18. 0692-10-10
    0692-10-10
    Login to see prices and stocks
  19. 0692PU-04
    0692PU-04
    Login to see prices and stocks
  20. 0692PU-04-04
    0692PU-04-04
    Login to see prices and stocks
  21. 0692PU-05
    0692PU-05
    Login to see prices and stocks
  22. 0692PU-05-05
    0692PU-05-05
    Login to see prices and stocks
  23. 0692PU-06
    0692PU-06
    Login to see prices and stocks
  24. 0692PU-06-06
    0692PU-06-06
    Login to see prices and stocks

Items 1-24 of 27

Page
12 24 36

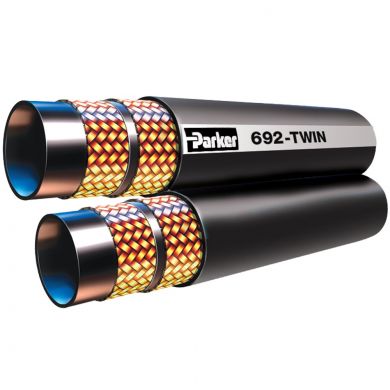

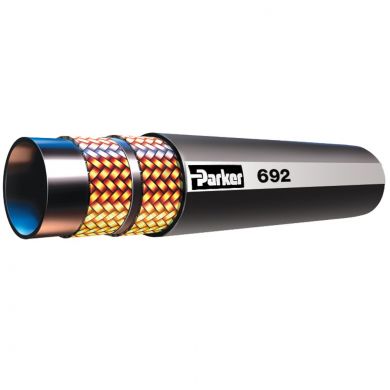

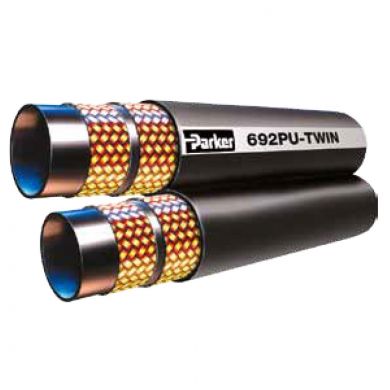

Parker's Medium Pressure No-Skive Compact hoses 692, 692Twin, 692PU, 692PU Twin and 692TC are mainly developed to meet the requirements of general small bending radii hydraulic applications. The hoses are designed for a constant working pressure of 21,0 MPa and are the preferred product solution for lifting and materials handling applications where tight bending radii, flexibility, ozone, abrasion and shock resistance are required. 692PU and 692PU Twin have been specially developed to meet the challenges of over -the-sheave applications. This is why their main applications are forklift masts, telehandlers and materials handling equipment. In addition to that the range includes also the hose type 692TC with a highly abrasion resistant MSHA approved Tough Cover.
Tough Cover (TC) offers 80 x greater abrasion resistance than standard cover.

Markets:

  • Lifting and Materials Handling Equipment
  • General small bending radii hydraulic applications

Features/Benefits:

  • Matched hose and fitting system guarantees an approved and safe combination and the highest quality and safety combined with the longest service life of the final product to the end-users
  • Very tight bend radii allowing compact machine design
  • Nitrile (NBR) inner tube for extended fluid compatibility
  • 692PU/692PU Twin are very flexible and manufactured with premium-quality polyurethane cover
  • 692TC has a highly abrasion resistant and MSHA approved Tough Cover (TC).
  • Complete No-Skive fitting technology across the full range of medium pressure hoses providing simpler, quicker and safer hose assembly
  • The Parker medium pressure hose range is complemented by a full selection of compatible No-Skive fittings in steel and stainless steel

Applications:

  • General small bending radii hydraulic applications
  • Lifting and materials handling equipment
  • Over the sheave or reel applications

Parker's Medium Pressures Hoses 692, 692Twin, 692PU, 692PU Twin and 692TC are compatible with the Parker Parkrimp medium pressure fitting series 46 and partly with series 48
