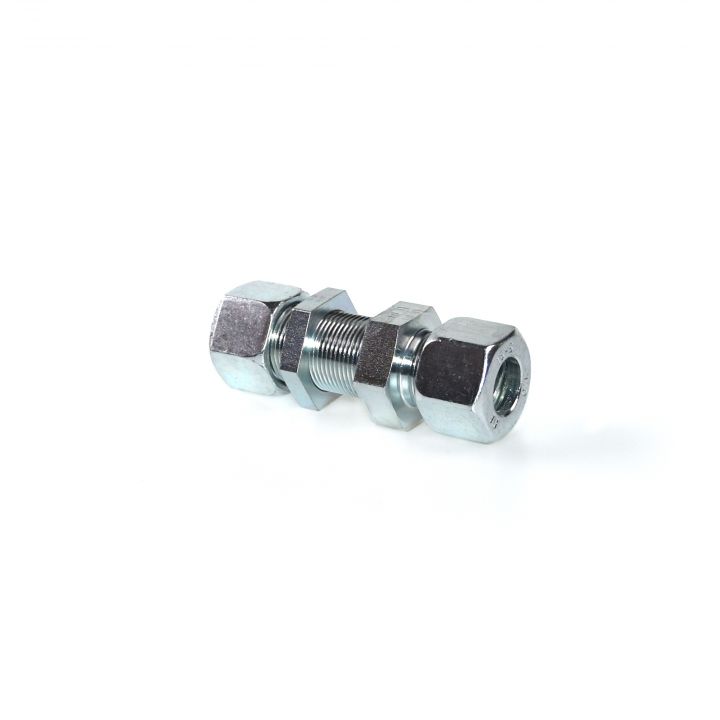

SV10L
Bulkhead union - 10L cone end, complete with nut and ring, galvanized steel
- Fast order processing
- All products in stock
- 24/7 Support
- Questions? Call +31(0)10 - 479 15 11
More information about SV10L
- Partnumber
- SV10L
- Brand
- Ermeto
- Manufacturer
- Parker Hannifin
- Crossreference Parker
- SV10LCF
- Material
- Steel, Cr(VI)-free
- Series
- Light Series
- Tubesize
- 10L - M16×1.5
- Tubesize II
- 10L - M16×1.5
- Shape
- Bulkhead union - EO 24° cone end
- Type
- Complete with nut and ring
- Weight (KG)
- 0.113900
- Customs Tariff Number
- 73079910
- Country of Manufacture
- Germany
- Box Qty
- 20
- Sales Unit
- Piece
- Lead Time (days)
- 10
Details of the SV10L
EO-PSR - Ermeto Original Progressive Stop Ring fittings (acc. DIN 3861, DIN 2353) produce the high pressure, leak-free connections of tubes, components in hydraulic systems for reliable, trouble-free functioning of the entire units. With its basic function, the controlled progressive bite of EO-PSR into the tube, due to its unique internal geometry, is perfect for a broad range of applications, markets.
Markets:
- Automotive
- Defence
- Energy
- Environment
- Industrial
- Infrastructure
- Machine Tools
- Material Handling
- Mobile
- Oil and Gas
- Power Generation
- Process
- Transportation
- Water
Features/benefits of the EO-PSR fitting range:
- High corrosion resistance: The Cr(VI)-free surface treatment causes an average corrosion resistance of more than 500 hours to white rust. It also extends the life cycle of the fitting.
- High pressure: EO-PSR can be used in applications of up to 800 bar (S series) and 500 bar (L series). Stretches the range of applications.
- EO-LUB: Due to the special treatment of larger sized nuts (25S/28L and larger), the tightening torques of EO-PSR fittings have been reduced by 25%. Eases and speeds up assembly. Prevents under-assembly.
- Over-tightening protection: The special geometry of the EO-PSR prevents the over-assembly of EO-PSR fittings. Helps to avoid cost and time-consuming repair.
- Spring effect: Cost reduction because of the spring effect; re-tightening of the fitting is not necessary.
- Safe assembly: Maximum safety of assembly - two distinctive cutting edges provide a progressive increase of the tightening torque of the EO-PSR. The noticeable end point of the assembly process contributes to maximum safety of assembly.
- Multifunctional ring geometry - prevents over-tightening and additional costs for repair.
- Procurement is easy and fast. EO-PSR is available worldwide.
- Fast, easy and safe assembly - meets the requirements of the applicable standards for 24° cutting ring fittings.
Applications:
- Mobile hydraulics – hydraulic drive units, working hydraulic systems
- Power Generation – compressor stations in gas pipelines
