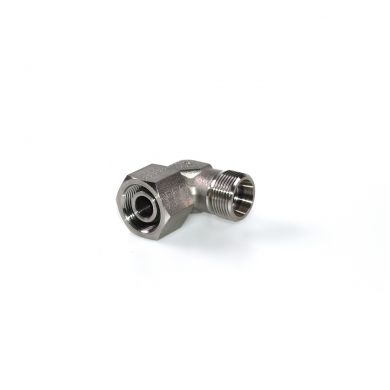

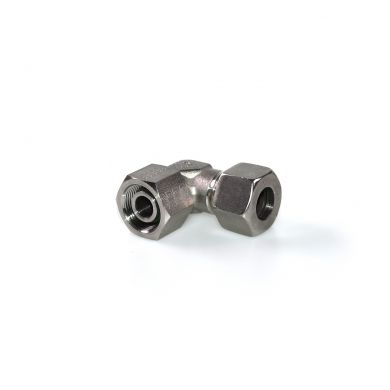

EW - Swivel nut elbow - EO 24° cone end / EO 24° DKO swivel
The main function of Ermeto DIN tube to swivel high pressure hydraulic tube fittings is to connect different numbers of tubes or hose.This broad range of DIN tube to swivel fittings, types EW, ET, EL, EVW, EVT, EVL, DA, RED up to KOR is available in steel with Cr(VI)-free surfaces and a stainless steel version. Depending on the specific application, the fittings can be delivered with cutting ring (EO-PSR or DPR) or elastomeric seal (EO-2).
- Machine Tools
- Material Handling
- Oil and Gas
- Power Generation
- Suitable for general hydraulic applications
- High corrosion resistance: The Cr(VI)-free surface treatment gives an average corrosion resistance of more than 500 hours to white rust. This attribute extends the life cycle of the fitting.
- Stainless steel surface: Ermeto DIN tube to swivel high pressure hydraulic tube fittings, in a stainless steel version have a high corrosion resistance to aggressive media and environmental influences, also a higher temperature resistance than steel. These features extend the range of applications.
- High pressure: Ermeto DIN tube to tube swivel high pressure hydraulic tube fittings have pressure ratings of up to 800 bar (S series) and 500 bar (L series), so that the fittings can be used in a wide range of applications.
