304 - Medium-Pressure No-Skive Hose - SAE100R2 - Phosphate ester resistant

7 Items

12 24 36
  1. 0304-04
    0304-04
    Login to see prices and stocks
  2. 0304-06
    0304-06
    Login to see prices and stocks
  3. 0304-08
    0304-08
    Login to see prices and stocks
  4. 0304-12
    0304-12
    Login to see prices and stocks
  5. 0304-16
    0304-16
    Login to see prices and stocks
  6. 0304-24
    0304-24
    Login to see prices and stocks
  7. 0304-32
    0304-32
    Login to see prices and stocks

7 Items

12 24 36

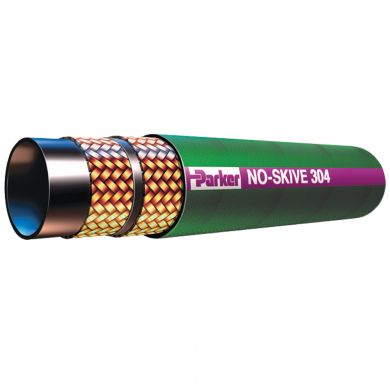

Parker's 304 hose is a phosphate-ester compatible hose that has a pressure range of 5000-1125 PSI and is specifically designed to resist aggressive airline hydraulic fluids. The 304 hose is reinforced with two steel braids and has an EPDM rubber cover making it extremely durable. Sizes range from ¼” to 2” in diameter to fit the requirements of various markets.

Markets:

  • Ground Support Equipment
  • Industrial

Features/Benefits:

  • 5000-1125 PSI in different sizes
  • Conforms with 100R2 Type AT specification
  • Leak-free assemblies when used with EPDM O-ring face seals and proper fittings

Applications:

  • Phosphate-ester base hydraulic fluids

Compatible Fittings:

  • 43 series fittings
