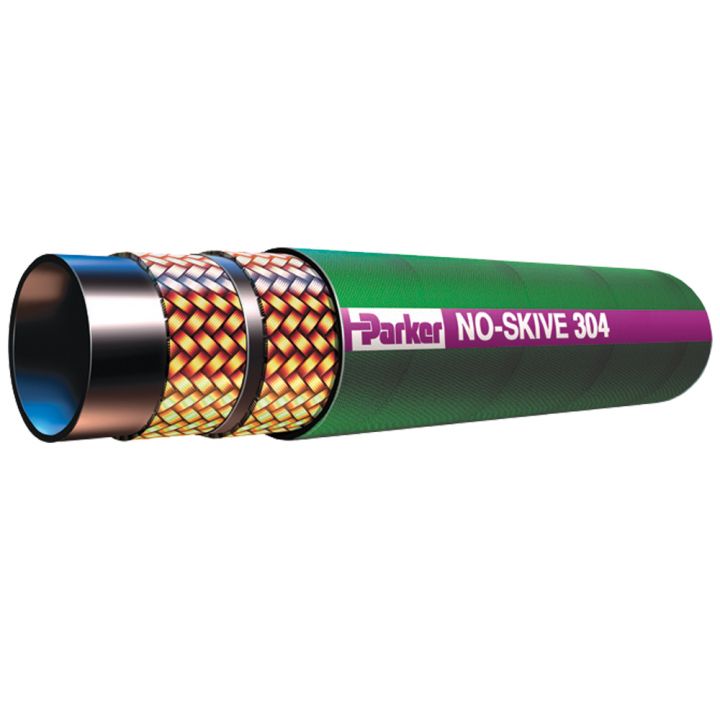

304 - Medium-Pressure No-Skive Hose - SAE100R2 - Phosphate ester resistant
Login to see prices and stocks
  • Fast order processing
  • All products in stock
  • 24/7 Support
  • Questions? Call +31(0)10 - 479 15 11

More information about 0304-12

Partnumber
0304-12
Manufacturer
Parker Hannifin
Partnumber Parker
304-12
Hose Cover Material
EPDM synthetic rubber
Reinforcement Type
Two high tensile steel wire braids
Tube Type
EPDM rubber
Working Pressure (BAR)
155
Working Temperature
-40°C up to +80°C
Bending radius
240
Hose I.D. (DN)
-19
Hose I.D. (inch)
3/4"
Hose I.D. (mm)
19.1
Weight (KG)
0.928500
Customs Tariff Number
40092100
Country of Manufacture
United States
Sales Unit
Meter

Details of the 0304-12

Parker's 304 hose is a phosphate-ester compatible hose that has a pressure range of 5000-1125 PSI and is specifically designed to resist aggressive airline hydraulic fluids. The 304 hose is reinforced with two steel braids and has an EPDM rubber cover making it extremely durable. Sizes range from ¼” to 2” in diameter to fit the requirements of various markets.

Markets:

  • Ground Support Equipment
  • Industrial

Features/Benefits:

  • 5000-1125 PSI in different sizes
  • Conforms with 100R2 Type AT specification
  • Leak-free assemblies when used with EPDM O-ring face seals and proper fittings

Applications:

  • Phosphate-ester base hydraulic fluids

Compatible Fittings:

  • 43 series fittings

Downloads 2 of the 0304-12
