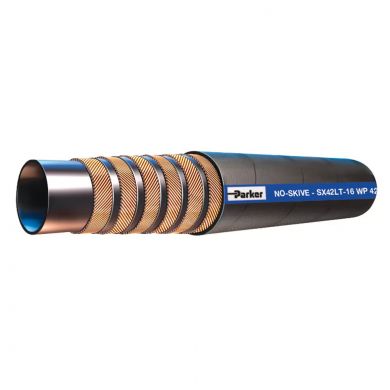

SX42 - High-Pressure No-Skive Multispiral Tough Cover - ISO 3862 Type R15

6 Items

12 24 36
  1. SX42-12
    SX42-12
    Login to see prices and stocks
  2. SX42-16
    SX42-16
    Login to see prices and stocks
  3. SX42-20
    SX42-20
    Login to see prices and stocks
  4. SX42TC-12
    SX42TC-12
    Login to see prices and stocks
  5. SX42TC-16
    SX42TC-16
    Login to see prices and stocks
  6. SX42TC-20
    SX42TC-20
    Login to see prices and stocks

6 Items

12 24 36

Parker's Parkrimp No-Skive High Pressure Multispiral hose SX42 according to ISO 3862 Type R15 - Parker Specification with thin cover No-Skive hose construction is a newly developed hose classified as "Good". This means that Good hoses are cost-effective products - fully meeting the main parameters of the traditional international standards and exceeding them in particular requirements, such as service life, appearance, environmental aspects etc. SX42 is the ideal hose for all general high pressure hydraulic applications.

Markets:

  • Mobile

Features:

  • Matched hose and fitting system guarantees an approved and safe combination and the highest quality and safety, combined with the longest service life of the final product to the end-users.
  • The hose type SX42 has a synthetic rubber inner tube and a reinforcement of four or six high-tensile steel wires
  • SX42 is a high performance hose with a constant working pressure of 42.0 MPa.
  • Temperature range up to +125 °C
  • Complete No-Skive fitting technology across the full range of high pressure hoses providing simpler, quicker and safer hose assembly.

Applications:

  • General high pressure hydraulic applications - Construction is one of the typical applications.

Parker's high pressure hose SX42 is compatible with the Parker Parkrimp high pressure fitting series 73 and 77
