HM 220_C.2_MVA
Production hose crimper
- Fast order processing
- All products in stock
- 24/7 Support
- Questions? Call +31(0)10 - 479 15 11
More information about HM 220_C.2_MVA
- Partnumber
- HM 220_C.2_MVA
- Weight (KG)
- 1.000000
- Country of Manufacture
- Germany
- Brand
- Uniflex
- Manufacturer
- Uniflex
- Technical Info
- L x W x H (mm) : 645 x 560 x 1450
- Machinetype
- HM 225
- Input Voltage
- 380-400VAC/50-60 Hz
- Control
- Control C.2 + Touch
- Drive
- Electrical
- Crimp force (kN / Ton)
- 1350 / 135
- Wattage
- 5,5 kW
- Sales Unit
- Piece
Details of the HM 220_C.2_MVA

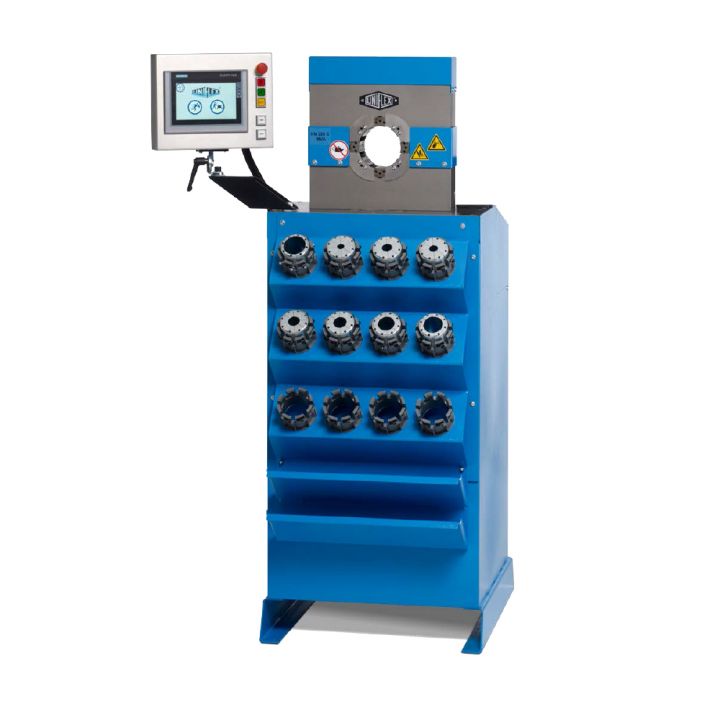

HM 220_C.2_MVA Package Production hose crimper, 140 Ton non greased tool with C.2 controller
- SAE R12/ 4 SH up to 1“ and Industrial up to 2“
- Opening travel + 35 mm (+ 1,38“)
- Master dies length 75 mm (2,95“))
- Opening without dies : 105 mm (4,13“)
- 2 Years Warranty
- Half power, double speed possible
Controller C.2:
- Siemens 7" touch panel with color display
- Data memory
- Crimping according to diameter or pressure
- Quality control software – PFM (pressure force monitoring)
- Completely adjustable (accessories)
- Step-by-step crimping
- Automatic crimping data documentation (data logging)
- Network-compatible (Industrie 4.0)
Includes:
- Dies 239 Ø 17, 20, 24, 28, 32, 40, 44, 50
- QDC 239.5 (quick die change tool)
- Die set storage QDS 239 B
