H29TC-16

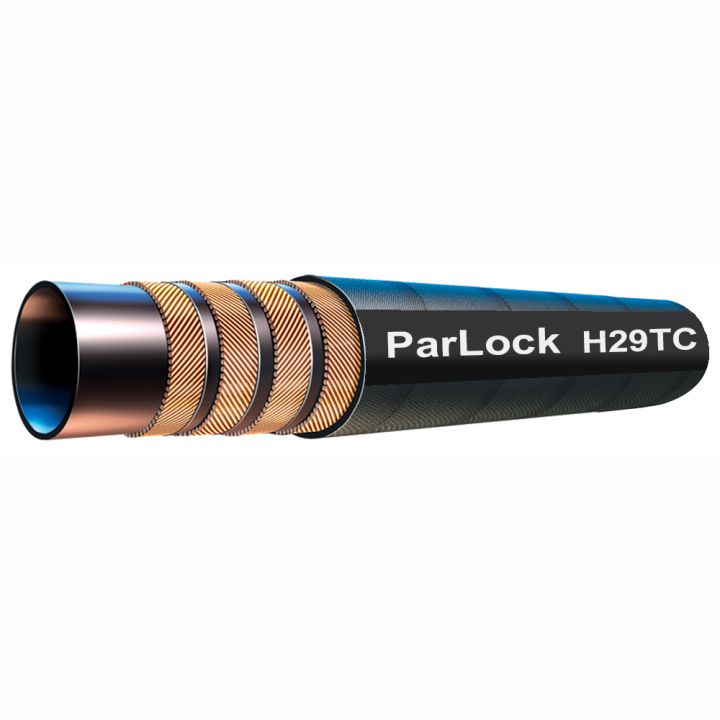

H29ST - High-Pressure ParLock Tough Cover Multispiral Hoses ISO 3862 - DIN EN 856 TYPE 4SH
- Fast order processing
- All products in stock
- 24/7 Support
- Questions? Call +31(0)10 - 479 15 11
More information about H29TC-16
- Partnumber
- H29TC-16
- Weight (KG)
- 1.319200
- Country of Manufacture
- Italy
- Manufacturer
- Parker Hannifin
- Crossreference Parker
- H29TC-16
- Hose Cover Material
- Synthetic rubber, Highly abrasion resistance , MSHA accepted
- Reinforcement Type
- Four spirals high-tensile steel wire
- Tube Type
- Synthetic rubber
- Working Pressure (BAR)
- 400
- Bending radius
- 340
- Hose I.D. (DN)
- -25
- Hose I.D. (inch)
- 1"
- Hose I.D. (mm)
- 25.0
- Working Temperature
- -40 °C up to +100 °C
- Sales Unit
- Meter
- Customs Tariff Number
- 40092100
Details of the H29TC-16
Parker's ParLock Multispiral Hoses H29, H29TC and H29ST are developed with the ParLock Interlock technology and for a working pressure of up to 43,0 MPa. This hose range offer an excellent solution for extremely dynamic pressure applications.
