USC 10.2_00

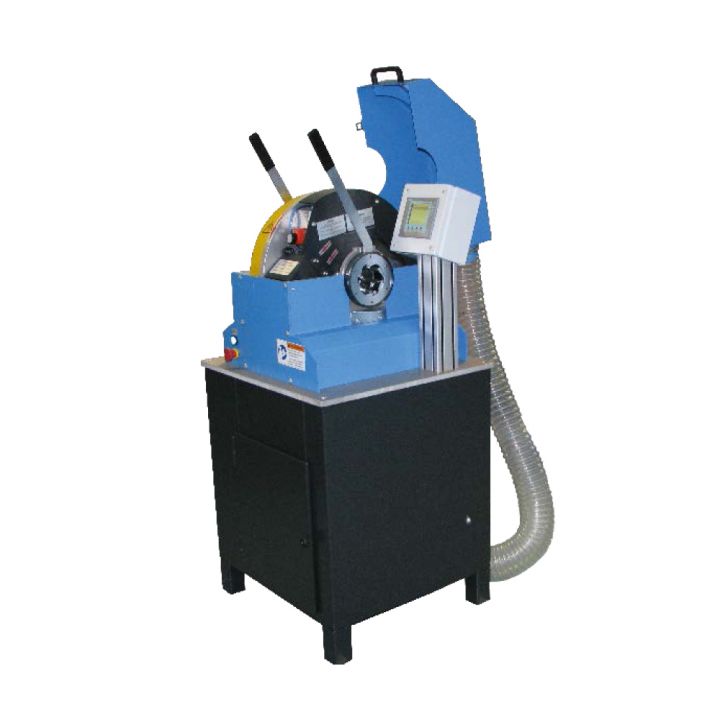

Planetary cutting machine for corrugated metal and PTFE hoses.

Cutting results that often eliminate an additional step. This completely unique planetary cutting machine delivers almost scrap-free production and high efficiency.

With a completely variable centering clamp system, all hose OD to the maximum rating for the machine can be cut. Approximate cutting time is 25 seconds for 11/4“ (ø DN 32).

Productive and ergonomic

• No dramatic flaring of the stainless steel braid
• Reduces or eliminates time-consuming manual preparatory work thereby increasing productivity and lowering costs
• Centering hose clamp system
• Shortest cut possible from 10 cm
• Minimizes personnel costs and preparatory work
• No wrapping/unwrapping with adhesive tape required
• Uses standard cutting blades

Siemens Industrial Color Touch Panel

• Clearly laid-out user friendly software on a panel with a 6“ color display screen
• Large article memory promotes productivity
• Reference run for optimal positioning of the cutting blade for cutting all hose diameters
• Programmable constriction time, cutting blade speed and cutting time allows for good results through a wide range of hose sizes and materials
• Monitoring of production by resettable total counter, batch size counter or daily cut counter

CE compliant

• Safety guards for operation without injury
