Pneumatic insert marking tool
- Fast order processing
- All products in stock
- 24/7 Support
- Questions? Call +31(0)10 - 479 15 11
More information about UIM 10
- Partnumber
- UIM 10
- Weight (KG)
- 1.000000
- Country of Manufacture
- Germany
- Brand
- Uniflex
- Manufacturer
- Uniflex
- Technical Info
- L x W x H (mm) : 210 x 240 x 310
- Drive
- Pneumatic
- Sales Unit
- Piece

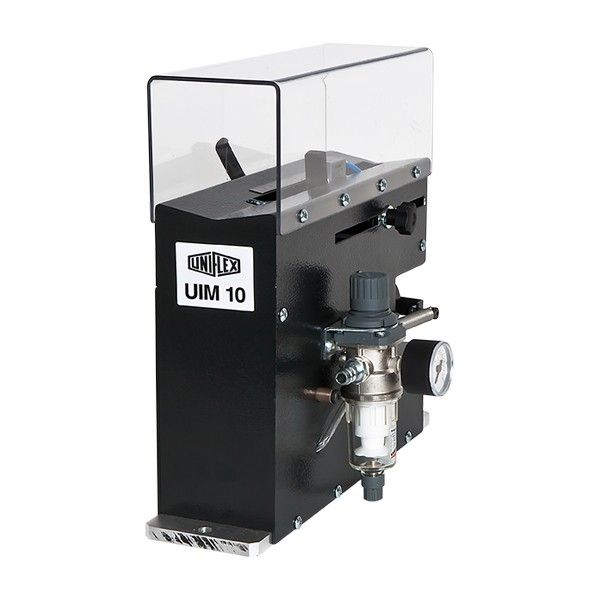

Details of the UIM 10
UNIFLEX insert – marking up to 2" for marking hoses of any type
- 700 hoses per hour - 3 times faster than marking by hand
- Economic check: the fitting is always positioned in the right place
- Compact, solid table unit
- Line mark for identification of socket end, clamp position, etc
- For hoses up to DN 50
- Stamp is pneumatically activated
- Marking length 10 - 60 mm
- Ink cartridge is horizontally mounted
- Rapid replacement of ink cartridge
- Accurate marking due to ink retention film
- Marking area is protected by cover
- Compressed air: min. 1.5 bar
- Dimensions (LxWxH): 210 x 240 x 310 mm
