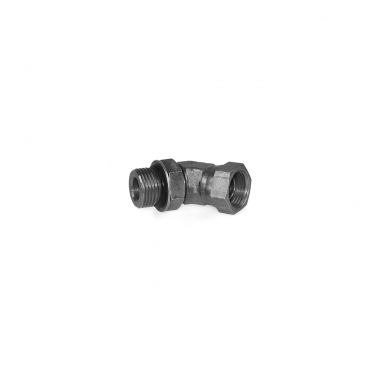

8438 - Swivel male 45° elbow - Male UN/UNF thread O-ring (ISO 11926) / NPSM Female swivel end (SAE J516)
Parker's Pipe Fitting and Port Adapter product line offers a wide range of thread types including NPT, NPTF, NPSM, BSPT, BSPP, SAE O-ring Boss (ORB), ISO 6149 and Metric. All fittings and adapters in this product line meet or exceed industry specifications.
- Military Ground Systems
- Aerial Lift
- Material Handling
- Military Marine
- Machine Tool
- Tapered thread fittings offers a compact size for efficiency and have a high temperature tolerance.
- Straight thread fittings have unlimited reusability, an elastomeric seal and no thread sealant is needed for installation.
- Steel fittings substantially exceeded the SAE corrosion requirements of 72 hours without red rust, lasting up to 1,000 as found by an independent test facility.
- Available in steel, stainless steel and brass in sizes 1/8” through 2” with working pressures up to 7500 psi.
- Hydraulic fluid and gas handling connections
