TMMC55W

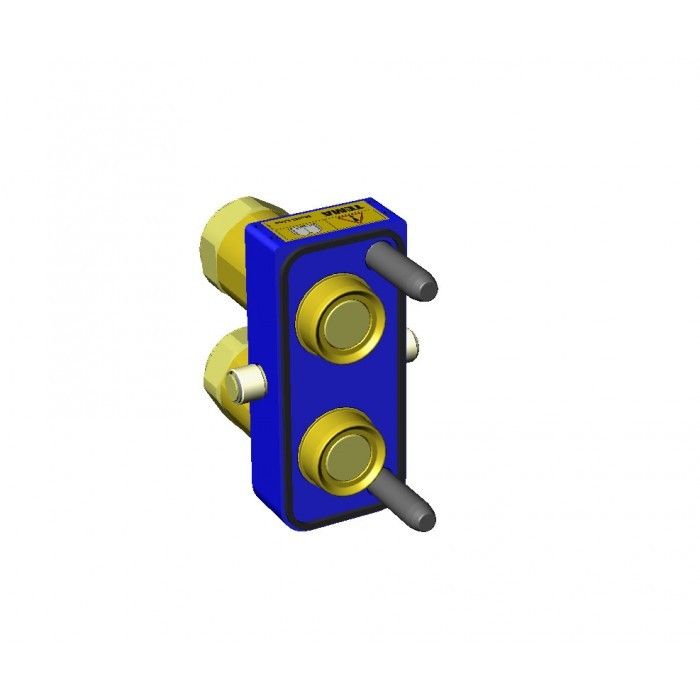

Multi-Line Plug Plate with Support Plate 2xG1/2"
- Fast order processing
- All products in stock
- 24/7 Support
- Questions? Call +31(0)10 - 479 15 11
More information about TMMC55W
- Partnumber
- TMMC55W
- Weight (KG)
- 3.300000
- Brand
- TEMA
- Manufacturer
- Parker Hannifin
- Crossreference Parker
- TMMC55W
- Connection Size
- 1/2 BSP Female
- Working Temperature
- -30°C up to +100°C
- Series
- C-Line Compact
- Electrical Connection
- without Electrical Connection
- Customs Tariff Number
- 84812010
- Box Qty
- 1
- Country of Manufacture
- Sweden
- Sales Unit
- Piece
Details of the TMMC55W
Technical Description:
Multiple connector system with locking lever and safety locking. Original Tema plug-profile with spill-proof flat face design. Coupling body/plug fitted with high-flow valve system.
Pressure Eliminator:
All plugs are fitted with pressure eliminators to eliminate residual pressures up to maximum working pressure on the plug side (maximum 50 bar on the coupling side).
7-pole Electrical Connection:
- Male part (coupling plate)
- Cable: 7 x 1,5 RDOE 5m
- Female part (plug plate)
- Cable: 7 x 1,5 RDOE 3m
- Not IP classified
- Contact block: NBR
- Connector: (pins and casing) bronze, silver plated
- Electric connection box: Thermoplastic (POM)
- Pull relief (cable): PA/NBR
- Max. voltage: 24 V
- Max. current: 16 A*
* For return-current through cable, the total permitted current through the connector is maximum 16 A.
Working Temperature:
-30°C up to +100°C (NBR/PUR)
Working Pressure:
Max. pressure range: 350 bar (design factor 4:1)
