TMMC3333Q

Technical Description:

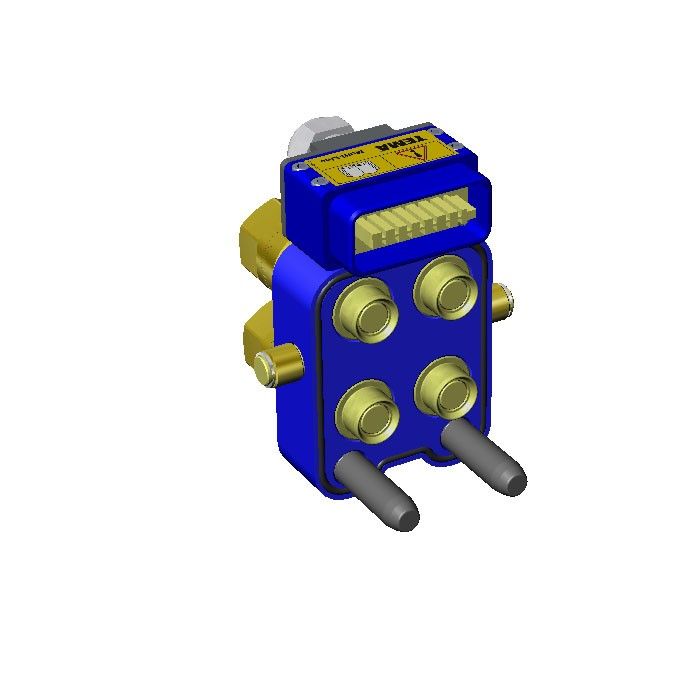

Multiple connector system with locking lever and safety locking. Original Tema plug-profile with spill-proof flat face design. Coupling body/plug fitted with high-flow valve system.

Working Pressure:

Max. pressure range: 350 bar (design factor 4:1)

Attention
To retain the design factor, only half the number of couplings of one size may be pressurised simultaneously.

Pressure Eliminator:

All plugs are fitted with pressure eliminators to eliminate residual pressures up to maximum working pressure on the plug side (maximum 50 bar on the coupling side).

7-pole Electrical Connection:

• Male part (coupling plate)
• Cable: 7 x 1,5 RDOE 5m
• Female part (plug plate)
• Cable: 7 x 1,5 RDOE 3m
• Not IP classified
• Contact block: NBR
• Connector: (pins and casing) bronze, silver plated
• Electric connection box: Thermoplastic (POM)
• Pull relief (cable): PA/NBR
• Max. voltage: 24 V
• Max. current: 16 A*

* For return-current through cable, the total permitted current through the connector is maximum 16 A.

14-pole Electrical Connection:

• Delivery without cables
• Protection category IP 67 (coupled)
• Screwed conductor connector: 0,5 – 1,5 mm²
• Pins and sleeves: copper coated
• Elect. junction box: Aluminium
• Traction relief: PA/NBR 9 –16 mm
• Max. voltage: 48 V
• Max. current: 10 A per core
