TMFC7755A

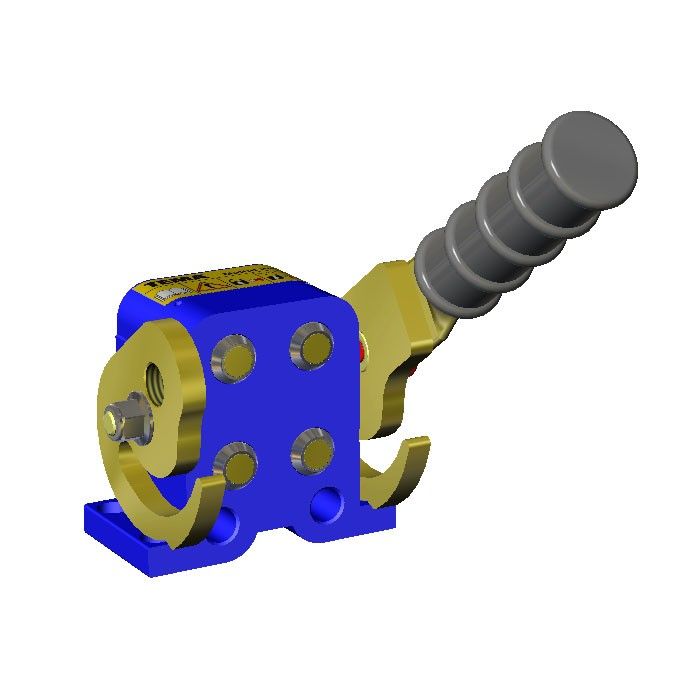

Multi-Line Coupling Plate 2xG3/4" + 2xG1/2"
Login to see prices and stocks
Ordered before 3pm, shipped today
  • Fast order processing
  • All products in stock
  • 24/7 Support
  • Questions? Call +31(0)10 - 479 15 11

More information about TMFC7755A

Partnumber
TMFC7755A
Weight (KG)
6.300000
Brand
TEMA
Manufacturer
Parker Hannifin
Crossreference Parker
TMFC7755A
Connection Size
3/4 BSP Female
Working Temperature
-30°C up to +100°C
Series
C-Line Standard
Electrical Connection
without Electrical Connection
Locking Lever Position
Left
Technical Info
The protective cap is included
Customs Tariff Number
84812010
Box Qty
1
Country of Manufacture
Sweden
Sales Unit
Piece

Details of the TMFC7755A

Technical Description:

Multiple connector system with locking lever and safety locking. Original Tema plug-profile with spill-proof flat face design. Coupling body/plug fitted with high-flow valve system.

Working Pressure:

Max. pressure range: 350 bar (design factor 4:1)

Attention
To retain the design factor, only half the number of couplings of one size may be pressurised simultaneously.

Pressure Eliminator:

All plugs are fitted with pressure eliminators to eliminate residual pressures up to maximum working pressure on the plug side (maximum 50 bar on the coupling side).

7-pole Electrical Connection:

  • Male part (coupling plate)
  • Cable: 7 x 1,5 RDOE 5m
  • Female part (plug plate)
  • Cable: 7 x 1,5 RDOE 3m
  • Not IP classified
  • Contact block: NBR
  • Connector: (pins and casing) bronze, silver plated
  • Electric connection box: Thermoplastic (POM)
  • Pull relief (cable): PA/NBR
  • Max. voltage: 24 V
  • Max. current: 16 A*

* For return-current through cable, the total permitted current through the connector is maximum 16 A.

14-pole Electrical Connection:

  • Delivery without cables
  • Protection category IP 67 (coupled)
  • Screwed conductor connector: 0,5 – 1,5 mm²
  • Pins and sleeves: copper coated
  • Elect. junction box: Aluminium
  • Traction relief: PA/NBR 9 –16 mm
  • Max. voltage: 48 V
  • Max. current: 10 A per core

Downloads of the TMFC7755A

pdf
(Size: 4 MB)
