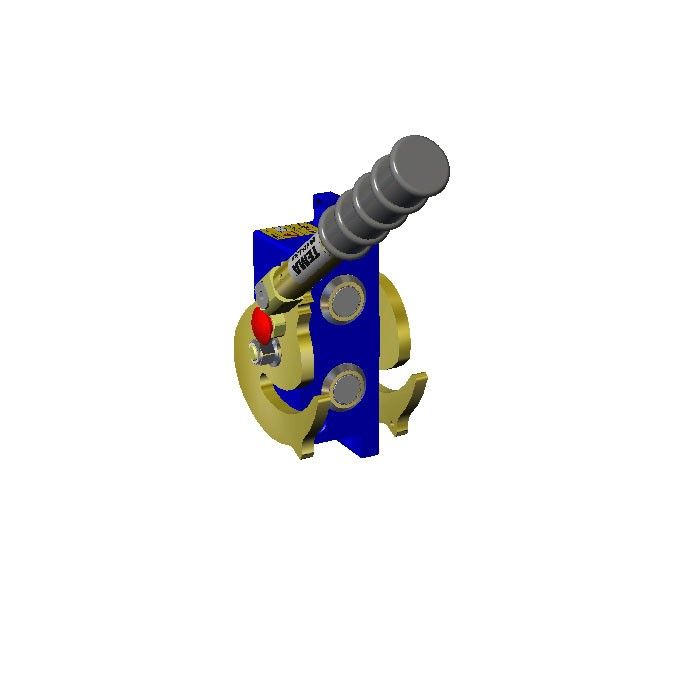

TMFC33WB

Multi-Line Coupling Plate, left 2xG3/8"
Login to see prices and stocks
Ordered before 3pm, shipped today
  • Fast order processing
  • All products in stock
  • 24/7 Support
  • Questions? Call +31(0)10 - 479 15 11

More information about TMFC33WB

Partnumber
TMFC33WB
Weight (KG)
4.800000
Brand
TEMA
Manufacturer
Parker Hannifin
Crossreference Parker
TMFC33WB
Connection Size
3/8 BSP Female
Working Temperature
-30°C up to +100°C
Series
C-Line Compact
Electrical Connection
without Electrical Connection
Locking Lever Position
Left
Technical Info
The protective cap is included
Customs Tariff Number
84812010
Box Qty
1
Country of Manufacture
Sweden
Sales Unit
Piece

Details of the TMFC33WB

Technical Description:

Multiple connector system with locking lever and safety locking. Original Tema plug-profile with spill-proof flat face design. Coupling body/plug fitted with high-flow valve system.

Pressure Eliminator:

All plugs are fitted with pressure eliminators to eliminate residual pressures up to maximum working pressure on the plug side (maximum 50 bar on the coupling side).

7-pole Electrical Connection:

  • Male part (coupling plate)
  • Cable: 7 x 1,5 RDOE 5m
  • Female part (plug plate)
  • Cable: 7 x 1,5 RDOE 3m
  • Not IP classified
  • Contact block: NBR
  • Connector: (pins and casing) bronze, silver plated
  • Electric connection box: Thermoplastic (POM)
  • Pull relief (cable): PA/NBR
  • Max. voltage: 24 V
  • Max. current: 16 A*

* For return-current through cable, the total permitted current through the connector is maximum 16 A.

Working Temperature:

-30°C up to +100°C (NBR/PUR)

Working Pressure:

Max. pressure range: 350 bar (design factor 4:1)

Downloads of the TMFC33WB

pdf
(Size: 4 MB)
