TH7-12

Home Hose Reels TH7-12

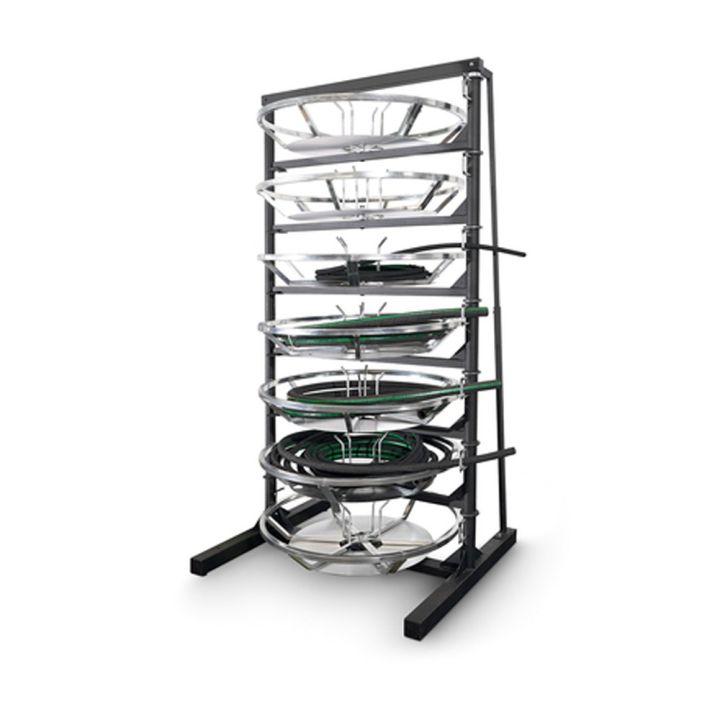

7-stage hose reel
Login to see prices and stocks
Ordered before 3pm, shipped today
  • Fast order processing
  • All products in stock
  • 24/7 Support
  • Questions? Call +31(0)10 - 479 15 11

More information about TH7-12

Partnumber
TH7-12
Manufacturer
Parker Hannifin
Crossreference Parker
TH7-12
Weight (KG)
195.000000
Country of Manufacture
Sweden
Customs Tariff Number
73269050
Sales Unit
Piece

Details of the TH7-12

This seven stage hose reel helps keeping the workshop floor free from hose coils and it significantly reduces the time when cutting hose. No more running back and forward between the pallet racking and the cutting machine. Every stage except the bottom one can be swung out horizontally to load a new coil. Because of the new design with the result of smaller reels there is a big saving on freight. To further increase the flexibility of the HoseReel 7, a wheel kit is available as an option.

Technical Data:

  • Hose capacity: 3/16" - 1 1/4"
  • Max. load per reel: 80 Kg
  • Max. outerdiameter of coil: 931 mm
  • Min. inner diameter of coil: 260 mm
  • Colour: Zinc plated / Black

Dimensions:

  • Width: 1 152 mm
  • Height: 2 210 mm
  • Depth: 1 010 mm
  • Weight: 150 Kg
