TE15LRX

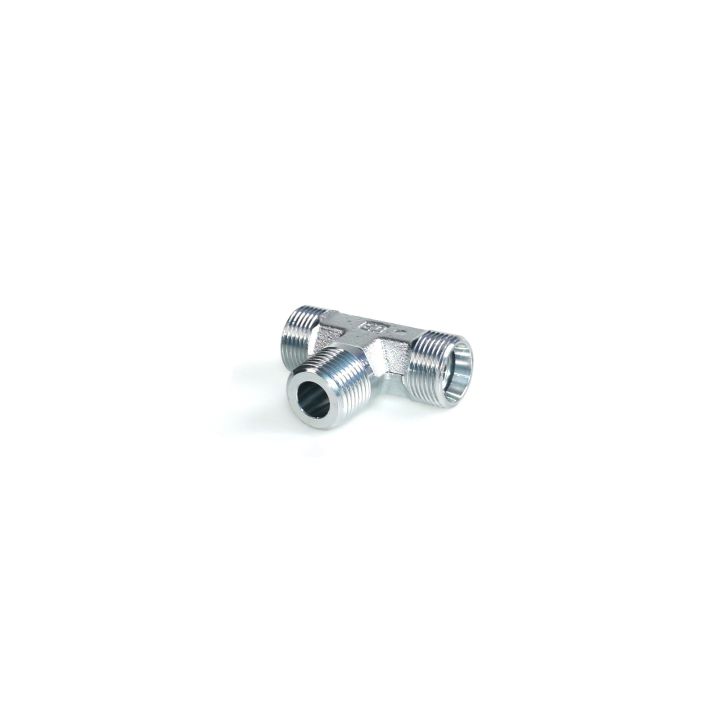

Male stud branch tee - 15L cone end x 1/2 male short BSP taper thread, body only, galvanized steel
Login to see prices and stocks
Ordered before 3pm, shipped today
  • Fast order processing
  • All products in stock
  • 24/7 Support
  • Questions? Call +31(0)10 - 479 15 11

More information about TE15LRX

Partnumber
TE15LRX
Brand
Ermeto®
Manufacturer
Parker Hannifin
Partnumber Parker
TE15LRCFX
Material
Steel, Cr(VI)-free
Series
Light Series
Tubesize
15L - M22×1.5
Connection Size
1/2 BSPT Male (KEG)
Shape
Male stud branch tee - EO 24° cone end / Male short BSP taper thread (DIN 3852-2, type C)
Type
Body only
Weight (KG)
0.113000
Customs Tariff Number
73079910
Country of Manufacture
Germany
Box Qty
10
Sales Unit
Piece

Details of the TE15LRX

The main function of Ermeto DIN non adjustable high pressure tube fittings is to connect different numbers of tubes or hoses. This broad range of Ermeto DIN non adjustable high pressure tube fittings, types WE-NPT, TE-M up to LE-R is available in steel with Cr(VI)-free surfaces and in a stainless steel version. Depending on the specific application, these fittings can be delivered with cutting ring (EO-PSR or DPR) or elastomeric seal (EO-2).

Markets:

  • Automotive
  • Defence
  • Energy
  • Environment
  • Industrial
  • Infrastructure
  • Machine Tools
  • Materials Handling
  • Mobile
  • Oil and Gas
  • Power Generation
  • Process
  • Transportation
  • Water

Applications:

  • Suitable for general hydraulic applications.

Features/ benefits:

  • High corrosion resistance: The Cr(VI)-free surface treatment gives an average corrosion resistance of more than 500 hours to white rust. This attribute extends the life cycle of the fittings.
  • Stainless steel surface: Ermeto DIN non adjustable high pressure tube fittings, stainless steel version, have a high corrosion resistance to aggressive media and environmental influences, also a higher temperature resistance, than steel. These features extend the range of applications.
  • High pressure: Non-adjustable fittings have pressure ratings of up to 630 bar, so that the fittings can be used in a wide range of applications.
