TE06SRMS

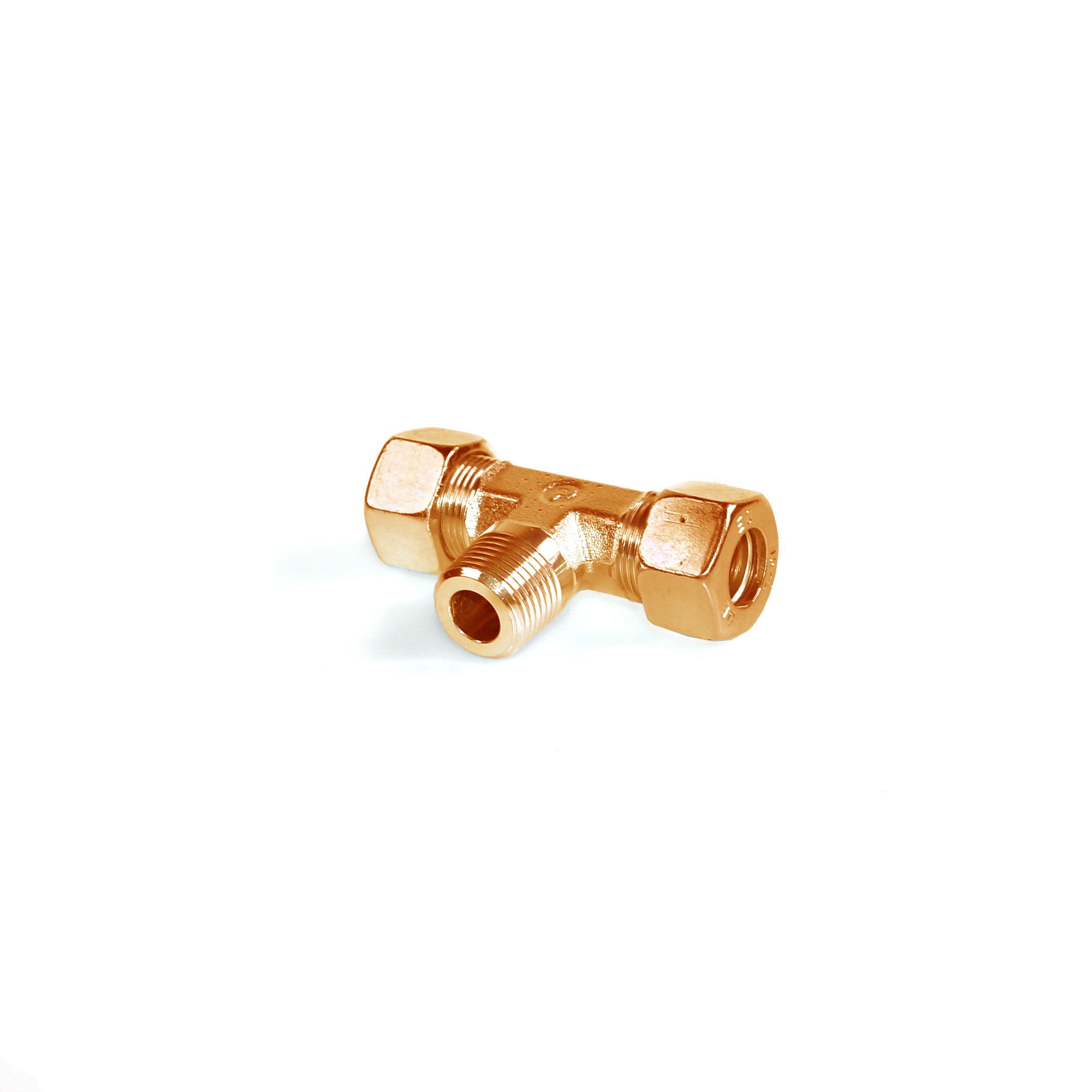

Male stud branch tee - 06S cone end x 1/4 male short BSP taper thread, complete with nut and ring, brass
Login to see prices and stocks
  • Fast order processing
  • All products in stock
  • 24/7 Support
  • Questions? Call +31(0)10 - 479 15 11

More information about TE06SRMS

Partnumber
TE06SRMS
Manufacturer
Parker Hannifin
Brand
Ermeto
Crossreference Parker
TE06SRMS
Material
Brass
Series
Heavy Series
Tubesize
06S - M14×1.5
Connection Size
1/4 BSPT Male (KEG)
Shape
Male stud branch tee - EO 24° cone end / Male short BSP taper thread (DIN 3852-2, type C)
Type
Complete with nut and ring
Weight (KG)
116.200000
Customs Tariff Number
74122000
Sales Unit
Piece

Details of the TE06SRMS

The main function of Ermeto DIN non adjustable high pressure tube fittings is to connect different numbers of tubes or hoses. This broad range of Ermeto DIN non adjustable high pressure tube fittings, types WE-NPT, TE-M up to LE-R is available in steel with Cr(VI)-free surfaces and in a stainless steel version. Depending on the specific application, these fittings can be delivered with cutting ring (EO-PSR or DPR) or elastomeric seal (EO-2).

Markets:

  • Automotive
  • Defence
  • Energy
  • Environment
  • Industrial
  • Infrastructure
  • Machine Tools
  • Materials Handling
  • Mobile
  • Oil and Gas
  • Power Generation
  • Process
  • Transportation
  • Water

Applications:

  • Suitable for general hydraulic applications.

Features/ benefits:

  • High corrosion resistance: The Cr(VI)-free surface treatment gives an average corrosion resistance of more than 500 hours to white rust. This attribute extends the life cycle of the fittings.
  • Stainless steel surface: Ermeto DIN non adjustable high pressure tube fittings, stainless steel version, have a high corrosion resistance to aggressive media and environmental influences, also a higher temperature resistance, than steel. These features extend the range of applications.
  • High pressure: Non-adjustable fittings have pressure ratings of up to 630 bar, so that the fittings can be used in a wide range of applications.
