SRI42-20

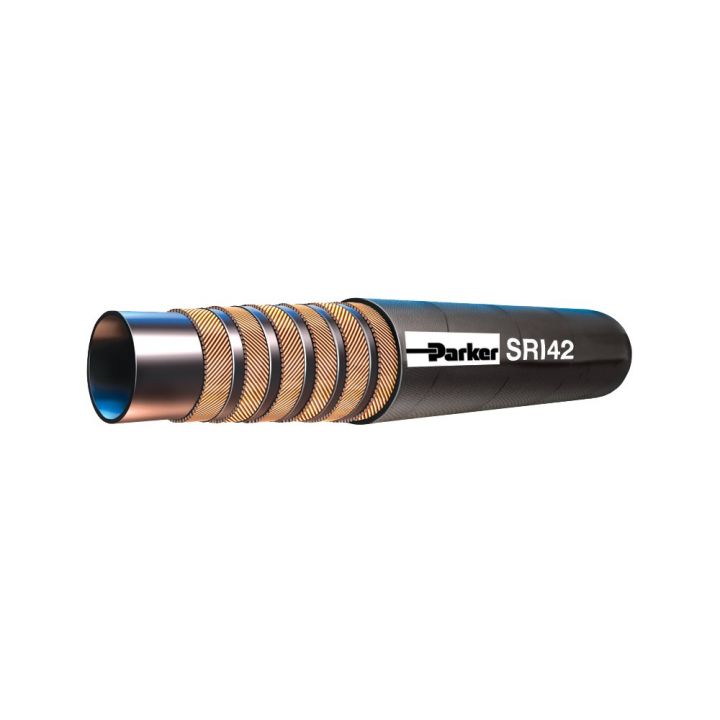

SRI42 No-Skive Multispiral
- Fast order processing
- All products in stock
- 24/7 Support
- Questions? Call +31(0)10 - 479 15 11
More information about SRI42-20
- Partnumber
- SRI42-20
- Weight (KG)
- 2.890000
- Crossreference Parker
- SRI42-20
- Manufacturer
- Parker Hannifin
- Hose Cover Material
- Synthetic rubber
- Reinforcement Type
- Four- or six-spiral steel wires
- Tube Type
- Synthetic rubber
- Working Pressure (BAR)
- 420
- Bending radius
- 400
- Hose I.D. (DN)
- -31
- Hose I.D. (inch)
- 11/4"
- Hose I.D. (mm)
- 31.8
- Customs Tariff Number
- 40092100
- Fitting Series
- 77 Series
- Country of Manufacture
- Germany
- Sales Unit
- Meter
Details of the SRI42-20
Parker's High Pressure No-Skive hose SR / SRTC according to ISO 18752 and ISO 3862 - EN 856 Type 4SP/4SH with the No-Skive hose construction, is the ideal hose range for all general high pressure hydraulic applications.
Markets:
• Construction Equipment
• Injection Moulding
• Forestry and Agriculture
• Materials Handling
• Pulp and Paper
Features/Benefits:
• Reinforcement of four spirals high-tensile steel wire - according to ISO 18752 and ISO 3862 - EN 856 Type 4SP/4SH
• Matched hose and fitting system guarantees an approved and safe combination and the highest quality and safety, combined with the longest service life of the final product to the end-users
• The hose type SRTC has a tough cover (TC) and is therefore ideal for applications where high abrasion resistance is required. Tough cover 80 x greater abrasion resistance than standard rubber cover hoses
• The hose is suitable for temporary immersion in mineral oil up to 70 °C with frequent inspections
• Complete No-Skive fitting technology across the full range of medium pressure hoses providing simpler, quicker and safer hose assembly
Applications:
• General high pressure hydraulic applications
