SC 6 ECO S_C.2_MVA

Workshop hose crimper
Login to see prices and stocks
  • Fast order processing
  • All products in stock
  • 24/7 Support
  • Questions? Call +31(0)10 - 479 15 11

More information about SC 6 ECO S_C.2_MVA

Partnumber
SC 6 ECO S_C.2_MVA
Weight (KG)
320.000000
Country of Manufacture
Germany
Brand
Uniflex
Manufacturer
Uniflex
Technical Info
L x W x H Machine (mm) : 700 x 600 x 735
Type
PB 239 Crimping dies
Machinetype
S 6
Input Voltage
380-400VAC/50-60 Hz
Control
Control C.2 + Touch
Drive
Electrical
Crimp force (kN / Ton)
2000 / 200
Wattage
4 kW
Sales Unit
Piece

Details of the SC 6 ECO S_C.2_MVA

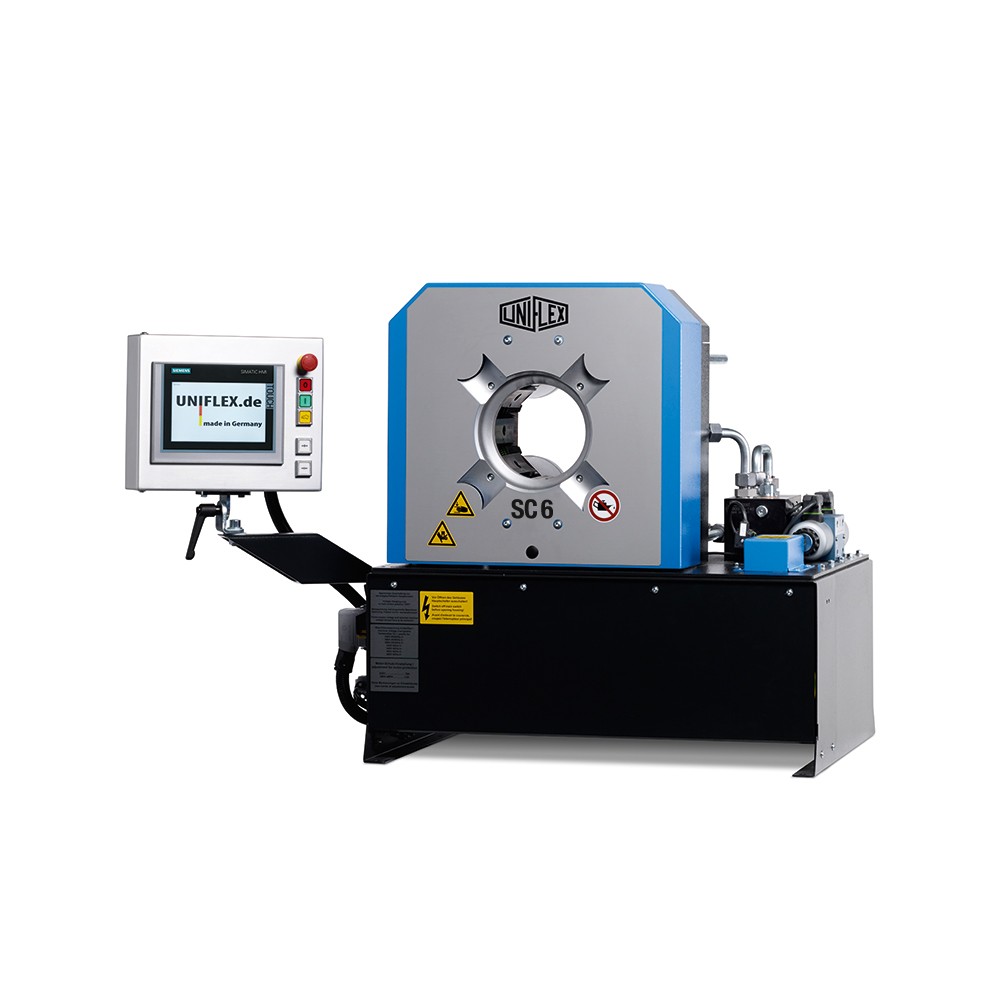

S 6 Eco_C.2_MVA Workshop hose crimper

200 Ton non greased tool with C.2 controller
SAE R12/ 4 SH up to 2“ and Industrial up to 3“
Opening travel + 45 mm (+ 1,77“)
Master dies lengt 110 mm ( 4.33“)
Opening without dies : 150 mm (5.9“)

Includes:
- QDC 239.5 (quick die change tool)

Controller C.2 :
Siemens 7“ color touch
Data memory
crimping by diameter or pressure,
Quality control software PFM (Pressure force monitoring)
Fully customizable ( Accessories)
Network programmable ( Industry 4.0)
2 Years Warranty

Link to Video :
http://short.uniflex.de/s6

Link to C controller :
http://short.uniflex.de/c2
