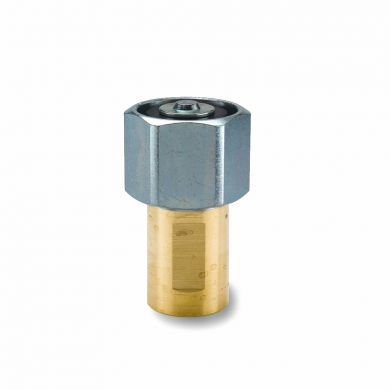

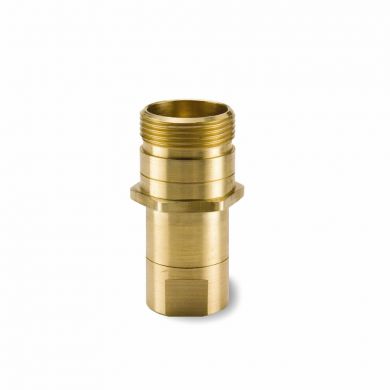

6100 Series Couplers (hydraulic) 3000 psi connect with 6100 Series Nipples. Parker's 6100 Series is a thread to connect, low spill coupling that can be connected under pressure. Coupler and nipple bodies are corrosion resistant brass. Couplers are available with a steel hex nut or heavy duty wing nut sleeve. A connection indicator groove on the nipple body visually shows when the connection is complete and valves are fully open. Couplers and nipples are available in a range of sizes. Couplings sets consisting of a coupler, nipple, and mounting flanges are also available.
Technical Characteristics:
Sizes: 3/4” thru 1-1/2"
Materials: Brass with steel sleeve
Port Ends: Female NPTF
Seal Options: Nitrile, EPR, Fluorocarbon, Neoprene
Markets:
Oil and gas
Construction
Testing
Features/Benefits:

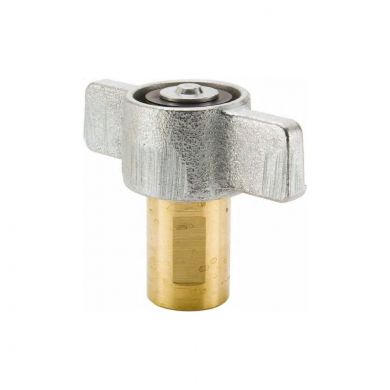

Couplers are available with steel hex or heavy duty wing nut sleeve
Low spill flush valves
Bonded valve seal is durable under full pressure connect and disconnect
Connection indicator groove on the nipple body visually indicates when the connection is complete
Optional flange for secure bulkhead or panel mounting
