P1S-4CRT

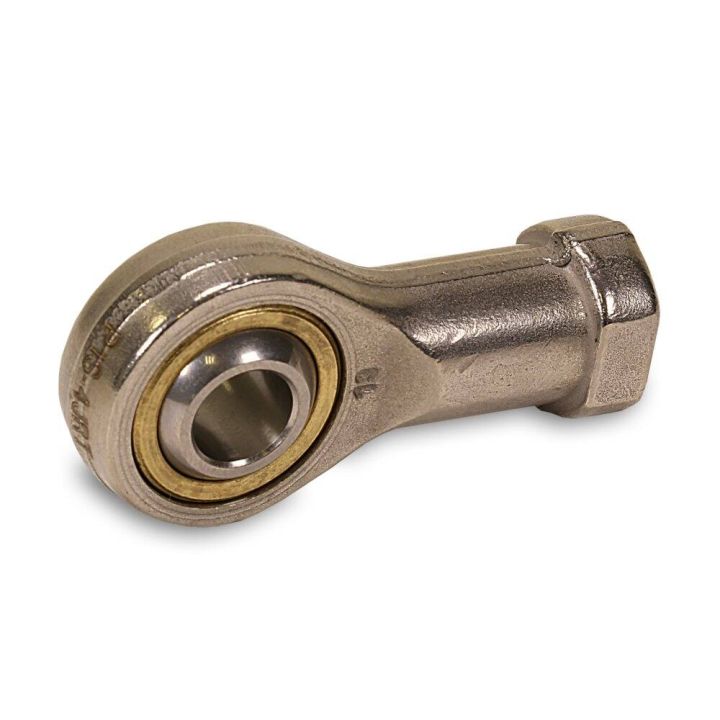

Cylinder mountings Stainless Swivel rod eye AP6
Login to see prices and stocks
Ordered before 3pm, shipped today
  • Fast order processing
  • All products in stock
  • 24/7 Support
  • Questions? Call +31(0)10 - 479 15 11

More information about P1S-4CRT

Partnumber
P1S-4CRT
Manufacturer
Parker Hannifin
Crossreference Parker
P1S-4CRT
Weight (KG)
0.021000
Customs Tariff Number
84833038
Country of Manufacture
Germany
Sales Unit
Piece

Details of the P1S-4CRT

P1S stainless steel cylinders have been specially designed for use in particularly demanding food, drink, beverage and harsh environments. This hygienic design with external seals of fluorianted rubber and pre-lubricated with food-industry-approved grease according to USDA-H1 make the cylinders particularly suitable for food industry use. The P1S actuator in bore sizes Ø10 to Ø125mm is an ISO 6431 / ISO 6432 stainless steel cylinders with standard temperature of -20°C to +80°C and high temperature option. Bores 32 to 125mm can be supplied ATEX certified.

A version of ISO 6432 Ø10 - Ø25mm incorporates fixed end cushioning, while the cylinders Ø20 - Ø125mm have pneumatic end-cushioning with adjusting screws for precise setting. Adjustable pneumatic cushioning permits greater loads and higher operating speeds, making the cylinder suitable for more demanding applications with shorter cycle times. Fixing dimensions to ISO 6431 / 6432 simplifies installation.

■ ISO 6432:
The ISO 6432 P1S stainless steel round cylinders are available in three versions. Two with fixed end-cushioning in double acting and single-acting spring return versions depending on the bore size. The third has adjustable pneumatic end-cushioning and is available in bores 20 and 25mm diameters.

■ ISO 6431:
The ISO 6431 P1S stainless steel round cylinders are double acting with adjustable pneumatic end-cushioning and are available in bores 32 to 125mm diameters. They are supported by a range of stainless steel mounting options. As with the ISO 6432 cylinders they are designed to comply with hygiene requirements in accordance with the EU Machine Directive. These cylinders can be dismantled to facilitate service and maintenance.

■ High Temperature:
All seals in the high temperature version of P1S are developed and validated for continuous operation up to +150°C. The combination of the seal geometry and the FPM material (Fluorocarbon rubber) ensures reliable and long service life. Certain restrictions apply when choosing sensors due to the temperature range. High temperature cylinders have no magnetic piston and cannot be fitted with sensors (the magnetic field strength in high temperatures is too low to ensure correct reliable sensor function).

■ ATEX Certification:
An atmosphere with the potential to become an explosive atmosphere during operating conditions and / or under the influence of the surroundings is defined as a potentially explosive atmosphere. Products covered by directive 94/9/EC are defined as intended for use in potentially explosive atmospheres. All P1S cylinders in the range 32 to 125mm bores can be supplied ATEX certified for use in these type of environments.
