SCLTSD - LevelTempController

5 Items

12 24 36
  1. SCLTSD-250-00-07
    SCLTSD-250-00-07
    Login to see prices and stocks
  2. SCLTSD-250-10-05
    SCLTSD-250-10-05
    Login to see prices and stocks
  3. SCLTSD-370-10-05
    SCLTSD-370-10-05
    Login to see prices and stocks
  4. SCLTSD-370-10-07
    SCLTSD-370-10-07
    Login to see prices and stocks
  5. SCLTSD-520-00-07
    SCLTSD-520-00-07
    Login to see prices and stocks

5 Items

12 24 36

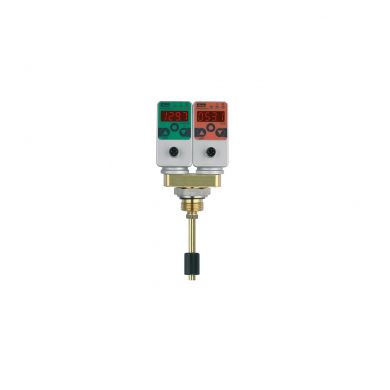

The LevelTempController enables the temperature and the level to be configured and displayed separately on the same platform. When monitoring the tank, this integration of level and temperature functionality opens up many possibilities. The LevelTempController combines the functions of a level/ temperature switch, a level/temperature sensor, and a level/temperature display:

  • Level/temperature display
  • Switching outputs
  • Analog signal

Level

The position of the float is finely graduated (≥ 5 mm) and continually logged and shown in mm or inches in the display. The continual logging of the level means that there is no risk of individual mechanical contacts 'sticking'. This greatly increases the operational safety of the monitored installation.

Temperature

The temperature in the medium is continually logged and shown on the display. As with the LevelController, all switching outputs can be configured individually. In addition, all the comfortable switching functions are available, including the window and hysteresis functions, normally open and normally closed contacts, and an analog output or temperature.

Device features:

  • Proven measurement system
  • Rotating
  • Level display
  • mm/inch/% display
  • High & low display
  • Analog output
  • Switching outputs
  • One borehole only
  • No surge pipe necessary
  • Replaces several mechanical switches
