SC 12 i
Shop By
Menu
Show allCategories
Search
Language:
- More than 30.000+ products
- Personal advice!
- Questions? Call +31 (0)10 - 479 15 11
- Mail: info@geeve.com

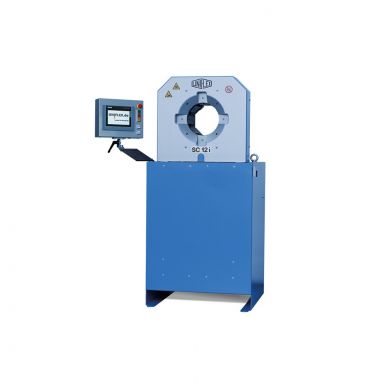

With a 370-ton crimping force, the new SC 12 i is the most powerful workshop crimper for R15 industrial hoses up to 3“ and high pressure hoses up to 1“. With its large opening and a maximum crimping range of up to 139 mm (5.47“), the SC 12 i also crimps 4“ Camlock industrial fittings and even 90° fittings with ease. The compact design allows direct access from all sides, which is particularly important when crimping short workpieces. Three versions of the SC 12 i are available, with a micrometer, Control C.2 or IPC. Like all UNIFLEX crimpers, the SC 12 i features the legendary UNIFLEX slide bearing technology for maximum cleanliness and consistent operations as well as low maintenance requirements.
Features
Large opening travel
- Easy pressing of elbow fittings without removing the pressing dies
Large pressing tool
- Also allows crimping of up to 4 inch industrial hoses
Compact design
- Finds place in any workshop
Plain bearing technology
- Lubricant-free – for more cleanliness and longer machine life
- Maximum productivity, with extremely low operating costs
- No contamination of the hose line with grease
- Ideal also for the food and pharmaceutical industry
- Reduces press force loss by up to 20%
- Consistenly accurate crimp force

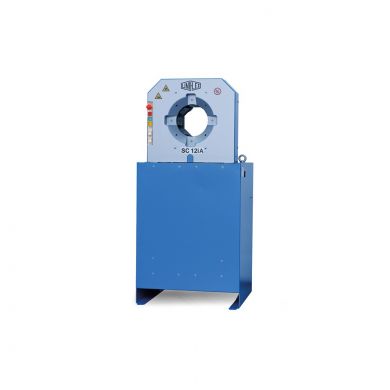

Ecoline version
- Entry level model with the same quality
CE compliant
