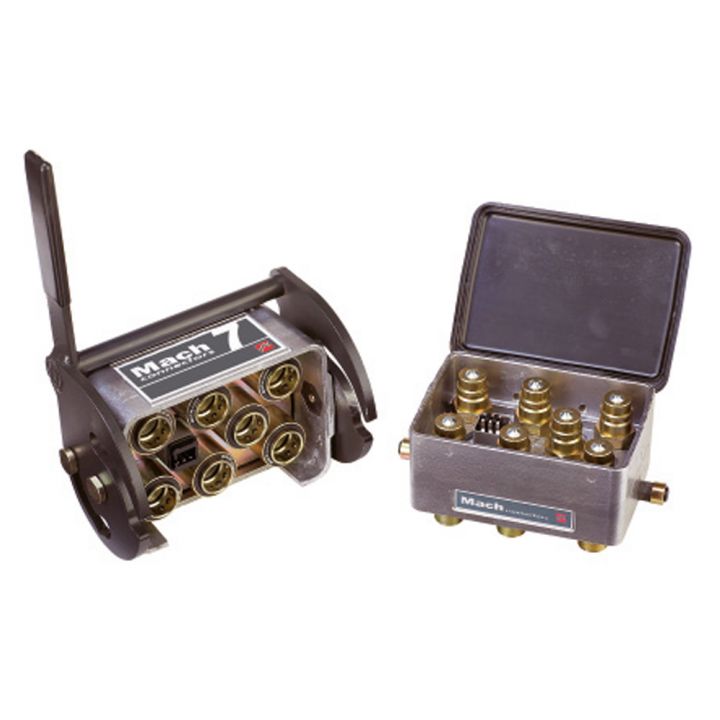

MACH7T

Technical Description:

The couplings meet the requirements of ISO 7241-1 Series A. Possible to connect 4, 5, 6 or 7 hydraulic lines simultaneously. No coupling misconnection or accidental disconnection. Using a standard interface will still allow end users to connect their standard quick coupling equipped implements. In the version with seven lines (MACH 7), the base connector is equipped with an electrical connector as standard feature, which is an option on the MACH 4, 5 and 6.

Advantages:

Individual ball locking system and central cam locking mechanism: a simple movement enables to connect all the hydraulic lines. Three part poppet style valving with a molded shaped seal to prevent seal washout at high flow rates. Possible to connect with two
lines under 200 bar, if other lines are not under pressure. Easy and fast connection and disconnection of implements or tooling.

Applications:

• Agricultural (front loaders, hedge cutters,...)
• Road service vehicles (road systems lorries, road sweepers, snowploughs,...)
• Industrial Applications

Working Pressure:

max. 250 bar

Working Temperature:

-30°C up to +110°C (NBR)
depending on the medium.
