KARRYFLARE

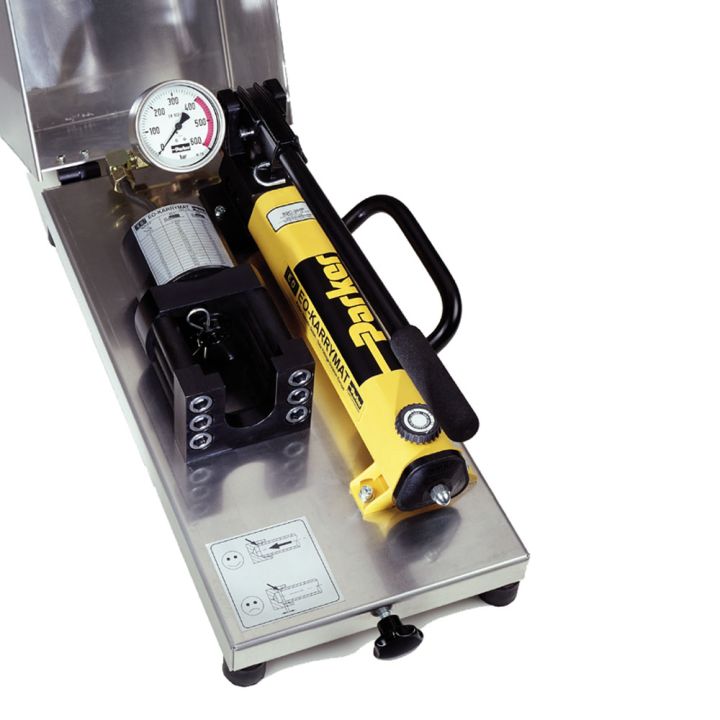

The KarryFlare is a portable device for easy and workmanlike 37° tube flaring. It allows the flaring of even large dimension steel and stainless steel hydraulic tube at assembly sites where Parflange® technology is not available. The KarryFlare consists of a hydraulic flaring unit and a hand pump. The hydraulic assembly pressure can be read on a gauge which is ergonomically located. The KarryFlare is ideal for tube flaring of small quantities and on-site tube installation. It is practical, simple to operate, reliable and easy to transport. The KarryFlare comes as one unit with all components firmly attached to a practical carrying frame.

Technical Data

• 37° flaring according to ISO 8434-2/SAE J514
• For Triple-Lok® hydraulic connections
• Tube outer diameter 6 to 38 mm/¼" to 1½" max. capacity (tube-OD x wall thickness) Steel and stainless steel tube: 38 x 4 mm/1½" x 0.120“
• Weight: approx. 29 kg
• Dimensions: approx. L 750 mm x W 360 mm x H 260 mm
• For fitting assembly see Triple-Lok® assembly instructions

Advantages

• Flexible on-site tube flaring
• Simple operation
• KarryFlare is portable and does not require any power supply
• Flaring quality is comparable to EOMAT
• Saves time and effort compared to manual impact flaring
• Safe and consistent result
• All elements are ergonomically located
• Robust, light metal transport box
• Telescopic handle and wheels for convenient trolley transport
• Uses "M15" flaring dies (EOMAT/1015)
• Transport protection

Applications

• Assembly of 37° fl are fittings in small quantities
• On-site repair of agricultural vehicles and mobile construction equipment
• Repair workshops and plant maintenance
• Mobile repair service
