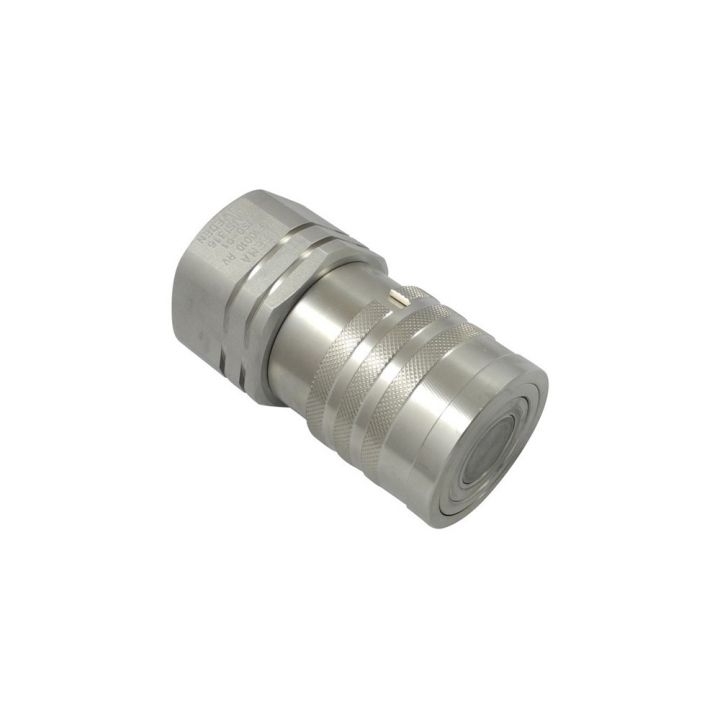

IF5010-75RV
Hydraulic Flat Face Quick Coupling with ISO 16028 Profile, Series IF
- Fast order processing
- All products in stock
- 24/7 Support
- Questions? Call +31(0)10 - 479 15 11
More information about IF5010-75RV
- Partnumber
- IF5010-75RV
- Weight (KG)
- 0.468000
- Brand
- TEMA
- Manufacturer
- Parker Hannifin
- Crossreference Parker
- IF5010-75RV
- Connection Size
- 3/4 BSP Female
- Working Pressure (BAR)
- 250
- Series
- IF Series
- Seals
- Viton
- Material
- Stainless Steel 316L
- Body Size
- 1/2"
- ISO
- ISO 16028
- Box Qty
- 1
- Country of Manufacture
- Germany
- Sales Unit
- Piece
Details of the IF5010-75RV
The FEM, FEC and IF series plug profile are produced according to ISO Standard 16028 and are compatible with other series complying with the same standard. These couplings offer a leckage free disconnection - minimal oil loss during uncoupling. Thanks to the valve design, the coupling has a minimum pressure drop, and thus achieves maximum cost-effectiveness. Exists in standard version (steel) and stainless steel.
Advantages:
- Can be operated with use of one hand.
- Safety locking feature as standard to prevent unintentional uncoupling.
- FEC with the pressure eliminator enable effortless connection under static pressure (up to rated working pressure).
- FEMP and FECP with pushpull features is suitable for multi-plates or when coupling is fixed on an application.
