HP10104131
High Pressure Quick Coupling with Parker Profile, Series HP
- Fast order processing
- All products in stock
- 24/7 Support
- Questions? Call +31(0)10 - 479 15 11
More information about HP10104131
- Partnumber
- HP10104131
- Weight (KG)
- 0.190800
- Brand
- TEMA
- Manufacturer
- Parker Hannifin
- Crossreference Parker
- HP1010 4131
- Connection Size
- 1/4 BSP Female
- Working Pressure (BAR)
- 1000
- Working Temperature
- -30°C up to +100°C
- Material
- Steel, Cr(VI)-free
- Technical Info
- Without Safety Locking
- Customs Tariff Number
- 84812010
- Country of Manufacture
- Sweden
- Sales Unit
- Piece
Details of the HP10104131

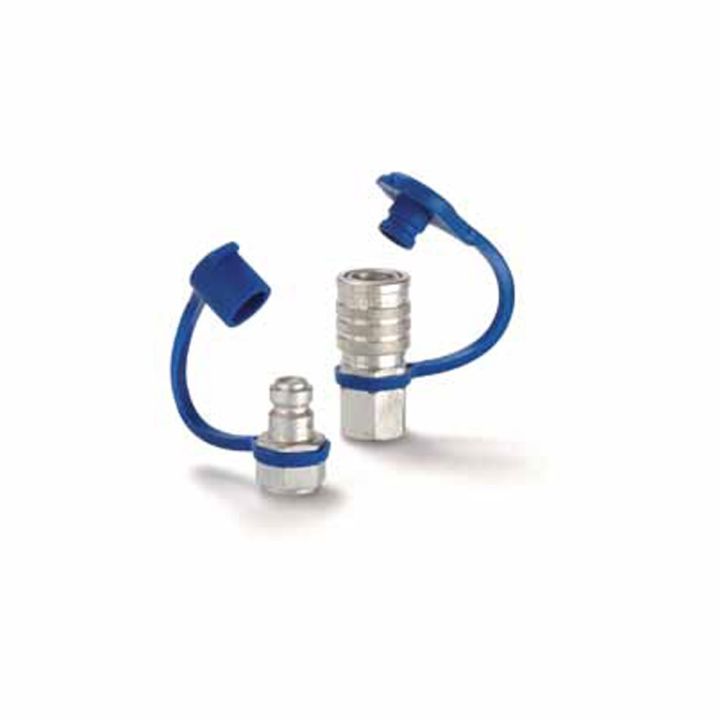

Parker's High Pressure Quick Coupling Series HP were specially developed for use in industrial machinery, test equipment, rescue equipment, bolt tensioning, torque wrenches etc.
The couplings of HP1000 and HP1500 can be supplied either with or without additional safety lock. Series HP is a dry break coupling system - no oil loss during disconnection and no inclusion of air during connection.
Markets:
- Rescue
- Industrial
Features/Benefits:
- High flow as a result of optimised valve design
- Dry break – no oil loss during disconnection and no inclusion of air during connection
- Plug can withstand static pressure disconnected up to full working pressure
- Parker Tema high pressure couplings are supplied with dust caps inclusive
Applications:
- High pressure tools
- Rescue equipment
- Torque wrenches
- Hydraulic high pressure pumps
- Bolt tensioning devices
