FL-313
10" FL Gauge - 254MM - M12
- Fast order processing
- All products in stock
- 24/7 Support
- Questions? Call +31(0)10 - 479 15 11
More information about FL-313
- Partnumber
- FL-313
- Weight (KG)
- 0.240000
- Country of Manufacture
- Great Britain
- Manufacturer
- Parker Hannifin
- Crossreference Parker
- FL69313
- Threadsize
- M12
- Mounting size
- 254mm
- Material
- Tranparant Polyamide, Black Polystyrene
- With temperature indication
- No
- Working Temperature
- -30°C to +90°C
- Working Pressure (BAR)
- 1
- Customs Tariff Number
- 90261089
- Sales Unit
- Piece
Details of the FL-313

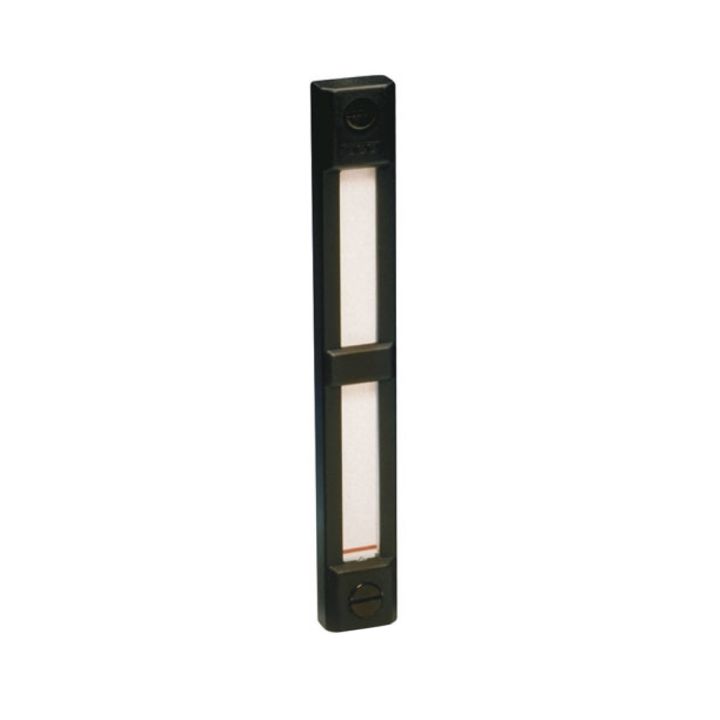

Dual-Purpose Fluid Level / Temperature Gauges
Fluid level / temperature gauges utilize a universal fixing that is designed for front or rear tank mounting. The gauges are available in three sizes each with two-hole mounting at 76mm, 127mm and 254mm centers. After positioning the gauge, the bolts are simply tightened to provide a secure seal. Square section seals minimize the likelihood of leakage, while the two-point mounting system eliminates problems with tank distortion.
Fluid level / temperature gauges feature a one-piece high-visibility lens for added security. The lens is molded in shatterproof, transparent polyamide to ensure accurate and clear oil level and temperature indication.
Features:
- Available with M10 or M12 bolt threads
- Thermometer scale range: 30 to +90°C (86 to +194°F)
- Working temperature: -30 to +90°C (22 to +194°F)
