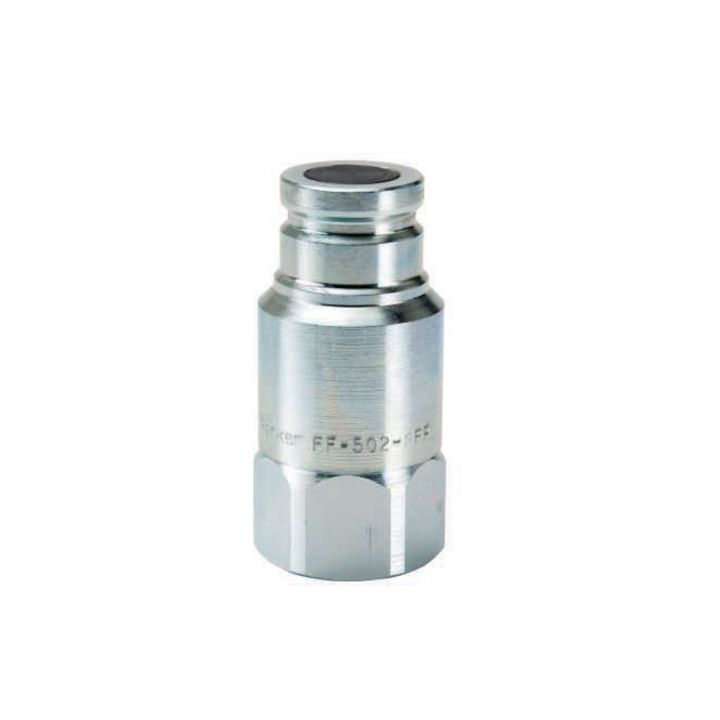

FF-372-8FP

FF Series Couplers (hydraulic) up to 5000 psi, meet the requirements of Hydraulic Tool Manufacturer's Association (HTMA - ISO 16028) standards in the 3/8" size, and connect with FF/FC Series Nipples. FC Nipples provide the ability to connect under pressure.
Parker's FF Series are double shut, off non-spill quick couplings designed to minimize spillage and air inclusion when connecting or disconnecting. Couplers have a sleeve locking mechanism to help prevent accidental disconnection. Couplers and nipples are available in a range of sizes to be versatile for use in applications with pressures up to 5000 psi.

Technical Characteristics:

• Sizes: 1/4” – 1”
• Material: Steel
• Port Ends: Female NPSF, Female NPTF, Female UNF, Female BSPP
• Seal Options: Nitrile/Polyurethane, EPR, Fluorocarbon

Markets:

• Industrial
• Construction
• Utility
• Agriculture

Features/Benefits:

• Push-to-connect operation makes connection easy with one hand
• 3/8" size is globally interchangeable with other couplings complying with HTMA (ISO 16028) standards
• Non-spill flush face valves minimize fluid loss when disconnecting, to reduce environmental contamination and avoid safety hazards caused by spillage.
• Flush face valves minimize the amount of air that can enter the system when connecting fluid lines, thus preventing accelerated wear of the system's components.
• Sleeve lock guards against accidental disconnection

Applications:

• Hydraulic tools
• Constuction equipment attachments
• Industrial hydraulic lines
• Agricultural implements
• Coolant fill and drain lines
