DVGE08LR

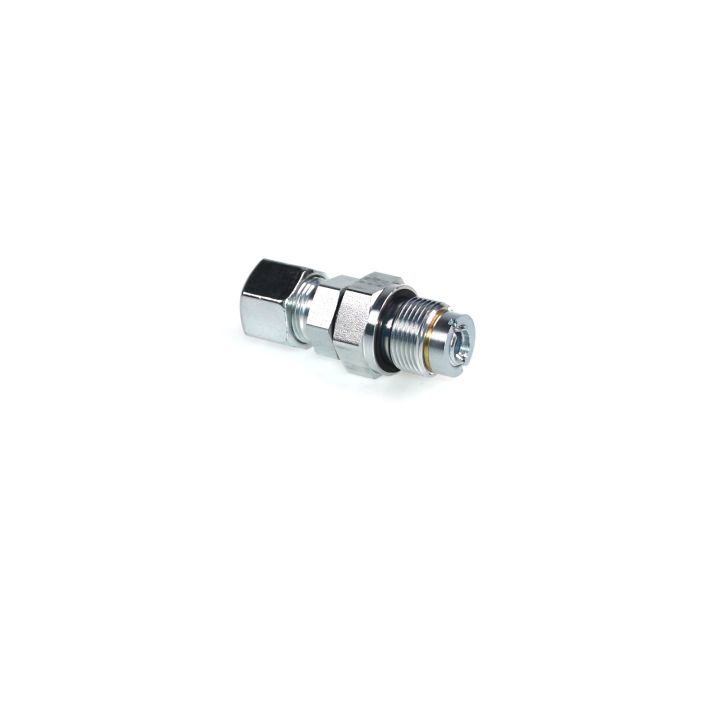

Straight male stud plain bearing rotary union
Login to see prices and stocks
  • Fast order processing
  • All products in stock
  • 24/7 Support
  • Questions? Call +31(0)10 - 479 15 11

More information about DVGE08LR

Partnumber
DVGE08LR
Brand
Ermeto®
Manufacturer
Parker Hannifin
Partnumber Parker
DVGE08LRCF
Material
Steel, Cr(VI)-free
Series
Light Series
Tubesize
08L - M14×1.5
Connection Size
1/4 BSP Male
Sealing
Eolastic softseal
Shape
Straight male stud plain bearing rotary union
Type
Complete with nut and ring
Weight (KG)
0.061000
Customs Tariff Number
73079910
Country of Manufacture
Germany
Box Qty
2
Sales Unit
Piece

Details of the DVGE08LR

Plain bearing rotary fittings for slow rotating, swinging or moving machine parts up to 40 bar (series L) or up to 100 bar (series S).

Flow media:

Hydraulic oils and lubricants on mineral oil base. Also for hydraulic fluids HETG and HEES. Not suitable for corrosive and HFC-fluids or gases.

Technical Specifications:

Materials: Casing, body nut and progressive ring of steel. Sealing of NBR (Perbunan), on request of FKM. Plain bearing rotary fittings are not available in stainless steel or brass.

Surface:

Cr(VI)-free

Construction-system:

Series L, tube O.D. 6 to 35 mm, working pressure (PN): 40 bar
Series S, tube O.D. 6 to 38 mm, working pressure (PN): 100 bar
Tube connection according to DIN 2353, ISO 8434-1. Male stud with metric thread and BSP thread. Sealing of male stud by Eolastic-seals.

Nominal temperature:

For sealings of NBR: -35°C up to +100°C
For sealings of FKM: -25°C up to +120°C

Markets:

  • Chemical Industries
  • Plant engineering
  • Power stations
  • Cable storage

Applications:

  • Connecting a fixed point to a rotating, swinging or moving machine part via hoses. To prevent torsion and to avoid small hose radius.

Features/ Benefits of the plain bearing rotary fittings:

  • Plain bearing rotary fittings help to avoid torsion of hoses and therefore improve the life cycle of these products
