DG101/12SHDOMD

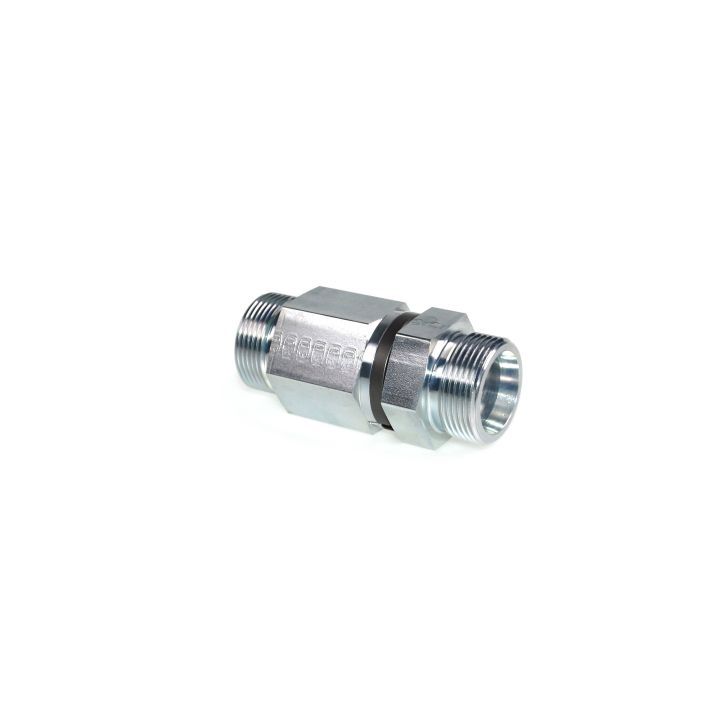

Straight ball bearing rotary union
Login to see prices and stocks
Ordered before 3pm, shipped today
  • Fast order processing
  • All products in stock
  • 24/7 Support
  • Questions? Call +31(0)10 - 479 15 11

More information about DG101/12SHDOMD

Partnumber
DG101/12SHDOMD
Brand
Ermeto
Manufacturer
Parker Hannifin
Crossreference Parker
DG101/12SCF
Material
Steel, Cr(VI)-free
Series
Heavy Series
Tubesize
12S - M20×1.5
Shape
Straight ball bearing rotary union - EO 24° cone end / EO 24° cone end
Type
Complete with nut and ring
Weight (KG)
258.200000
Customs Tariff Number
73079910
Country of Manufacture
Germany
Box Qty
1
Sales Unit
Piece

Details of the DG101/12SHDOMD

Parker ball bearing rotary fittings are used to connext a fixed point to a rotating, swinging or moving part via hoses. These products are used to prevent torsion and small hose radius. The ball bearing rotary fittings are suitable for hydraulic oils and lubricants on minerl oil base as flow media. The construction of this service-proved product range is characterized by a compact, maintenance-free construction. The ball bearing rotary fittings have a combined ball and plain bearing with constant lubrication, a low starting torque and wear-resistant annular piston sealings.

Markets:

  • Chemical Industries
  • Plant engineering
  • Power stations
  • Cable storage

Applications:

  • Suitable for general hydraulic applications.

Features/ Benefits of the ball bearing rotary fittings:

  • Parker ball bearing rotary fittings help to avoid torsion of hoses and therefore improve the life cycle of these products
  • Parker ball bearing rotary fittings have a Cr(VI)free surface, which is highly corrosion resistant (in average 500 hours against white rust). This surface renews the life cycle of the component and the entire hydraulic system.
  • The construction of the ball bearing fittings is maintenance-free, so that the costs for maintenance will be reduced.

Technical specifications:

Materials:

  • Casing, body nut of steel. Annular piston sealing: POM/FKM. Eolastic sealing: NBR, also available in FKM. Surface: Cr(VI)free.

Temperature:

  • Nominal temperatures: -14 °C up to +80 °C

Construction Systems:

  • 8 different versions with one rotational axis. Multiaxial rotary couplings on request. Tube connections according to DIN 2353, series S. Maximum working pressure 350 bar (peak pressure)
  • Male stud sealing by Eolastic seals of NBR
  • Male stud with metric parallel or BSPP thread.
