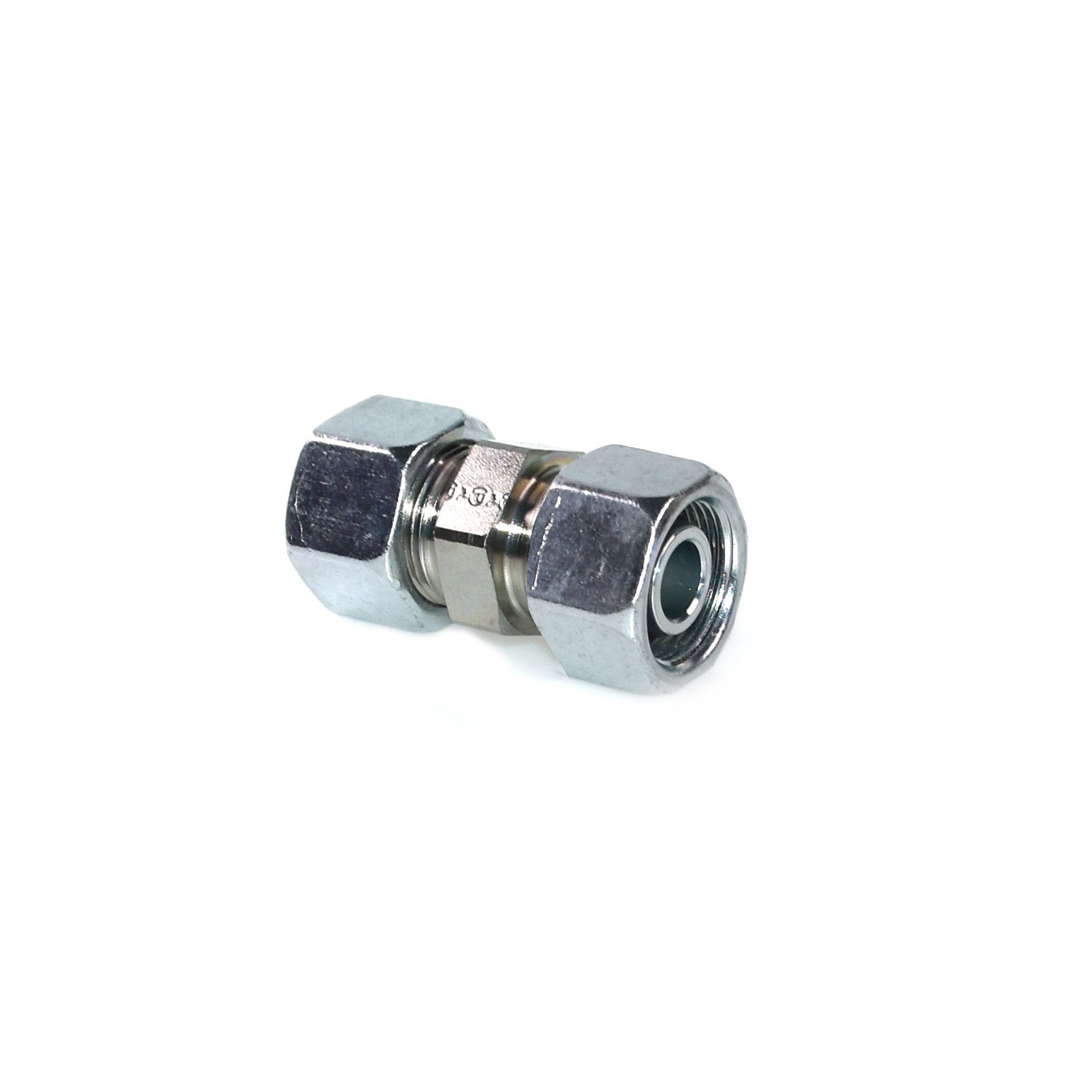

DA12L

Distance piece adapter - 12L DKO swivel x 12L complete with nut and ring, galvanised steel
Login to see prices and stocks
  • Fast order processing
  • All products in stock
  • 24/7 Support
  • Questions? Call +31(0)10 - 479 15 11

More information about DA12L

Partnumber
DA12L
Brand
Ermeto
Manufacturer
Parker Hannifin
Crossreference Parker
DA12LCF
Material
Steel, Cr(VI)-free
Series
Light Series
Tubesize
12L - M18×1.5
Shape
Distance piece adapter - EO 24° DKO swivel / EO 24° cone end
Type
Complete with nut and ring
Working Pressure (BAR)
400
Weight (KG)
0.104100
Customs Tariff Number
73079910
Country of Manufacture
Germany
Box Qty
10
Sales Unit
Piece

Details of the DA12L

The main function of Ermeto DIN tube to swivel high pressure hydraulic tube fittings is to connect different numbers of tubes or hose.This broad range of DIN tube to swivel fittings, types EW, ET, EL, EVW, EVT, EVL, DA, RED up to KOR is available in steel with Cr(VI)-free surfaces and a stainless steel version. Depending on the specific application, the fittings can be delivered with cutting ring (EO-PSR or DPR) or elastomeric seal (EO-2).

Markets:

  • Automotive
  • Defence
  • Energy
  • Environment
  • Industrial
  • Infrastructure
  • Machine Tools
  • Material Handling
  • Mobile
  • Oil and Gas
  • Power Generation
  • Process
  • Transportation
  • Water

Applications:

  • Suitable for general hydraulic applications

Features/ benefits:

  • High corrosion resistance: The Cr(VI)-free surface treatment gives an average corrosion resistance of more than 500 hours to white rust. This attribute extends the life cycle of the fitting.
  • Stainless steel surface: Ermeto DIN tube to swivel high pressure hydraulic tube fittings, in a stainless steel version have a high corrosion resistance to aggressive media and environmental influences, also a higher temperature resistance than steel. These features extend the range of applications.
  • High pressure: Ermeto DIN tube to tube swivel high pressure hydraulic tube fittings have pressure ratings of up to 800 bar (S series) and 500 bar (L series), so that the fittings can be used in a wide range of applications.
