9701-06BG3

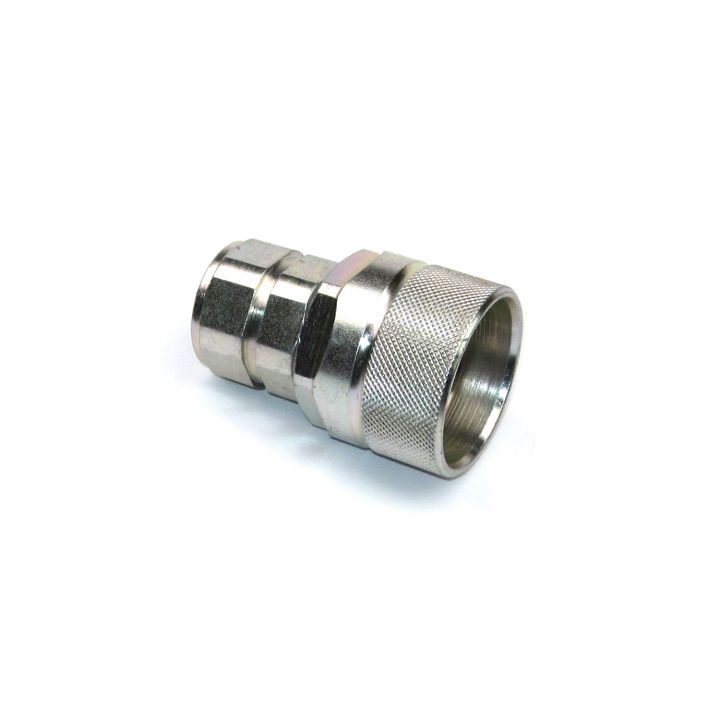

9700 Serie Coupler, 3/8 BSP Female Thread
Login to see prices and stocks
Ordered before 3pm, shipped today
  • Fast order processing
  • All products in stock
  • 24/7 Support
  • Questions? Call +31(0)10 - 479 15 11

More information about 9701-06BG3

Partnumber
9701-06BG3
Weight (KG)
1.000000
Brand
DNP
Manufacturer
DNP
Supplier Partnumber
PVV3.1310.113
Connection Size
3/8 BSP Female
Working Pressure (BAR)
400
Working Temperature
-25°C up to +100°C
Valve Type
Poppet
Series
9700 Series
Material
Steel, Cr(VI)-free
ISO
ISO 14541
Technical Info
Connection under pressure: allowed
Shape
Coupler 9700 series
Country of Manufacture
Italy
Sales Unit
Piece

Details of the 9701-06BG3

Screw-to-Connect Quick Coupling Series 9700 is suitable for difficult applications. Series 9700 is a rugged coupling system with a modular construction in steel and a working pressure up to 450 bar.

Markets:

  • Agriculture
  • Construction
  • Material handling

Features/Benefits:

  • Self-locking threads and external seal to prevent accidental disconnection - Screw-to-Connect Coupling
  • NBR seals and back-up ring in PTFE to withstand pressure impulsions
  • Connectable under pressure up to 50 bar
  • High resistance to mechanical and hydraulic shocks and also withstand vibrations
  • Sleeve mounted on the male tip to protect the sealing area
  • Three-part poppet style valve with a molded shaped seal to prevent seal washout at high flow rates

Applications:

  • Agriculture and mobile equipment
  • Rock hammers
  • Forestry equipment
  • Snow groomers
  • Excavators
