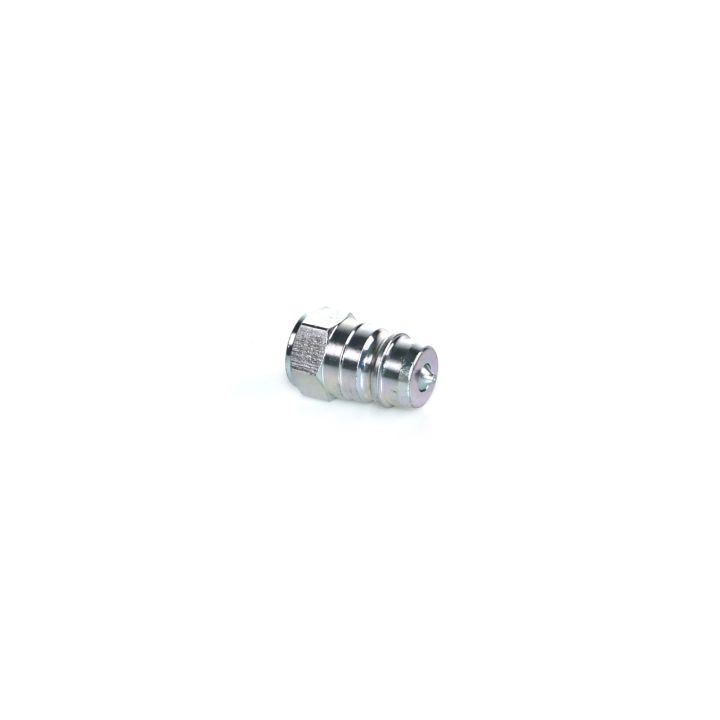

9402-16CH

H5000 Serie Plug, 1 BSP Female Thread
Login to see prices and stocks
  • Fast order processing
  • All products in stock
  • 24/7 Support
  • Questions? Call +31(0)10 - 479 15 11

More information about 9402-16CH

Partnumber
9402-16CH
Brand
Eaton
Manufacturer
Eaton
Supplier Partnumber
HA0505200
Connection Size
1 BSP Female
Working Pressure (BAR)
300
Working Temperature
-20°C to +100°C
Valve Type
Poppet
Series
H5000
Seals
NBR
Material
Steel, Cr(VI)-free
Body Size
1"
Technical Info
For pulsating pressures when disconnected apply a multiplier of 0.5
Sales Unit
Piece

Details of the 9402-16CH

Eaton’s H5000 Series steel quick disconnect coupling is a pull to connect double shut-off coupling. Featuring the original Eaton’s Gromelle™ profile, it remains as the series users prefer when it comes to severe hydraulic applications such as high pressure, pressure impulses, heavy mechanical loads and frequent connection and disconnection cycles. The unique sleeve lock option offers a reliable solution and benefit to the end user when safety is a concern.

Product Features:

  • Proprietary profile
  • Pull-to-connect with double shut-off valving
  • Ball-locking
  • Optional safety sleeve lock prevents accidental disconnections
  • Optional dust caps and plugs (made of anodized aluminium)
  • Pressure performance
  • Standard body material: Zinc trivalent steel
  • Standard seal material: NBR, FKM, EPDM
  • The heat treatment of the plug and use of high strength steel for the socket sleeve provide superior mechanical and hydraulic performance. The design of the valve gives the coupling increased robustness when disconnected.

Applications & Markets:

  • Automobile
  • Agriculture
  • Construction
  • Oil and Gas
  • Railway
  • Aeronautics
  • Food processing
  • Iron and Steel Industry
  • Electronics
  • Laboratories
  • General hydraulic applications
