9125-06
Firemaster Protection Sleeve
- Fast order processing
- All products in stock
- 24/7 Support
- Questions? Call +31(0)10 - 479 15 11
More information about 9125-06
- Partnumber
- 9125-06
- Weight (KG)
- 0.001000
- Country of Manufacture
- Canada
- Reference
- Pyrojacket® Firesleeve
- Supplier Partnumber
- PJ-04
- Color
- Orange
- Working Temperature
- Continuous 260°C - Short term exposure 1650°C
- Sales Unit
- Meter
Details of the 9125-06

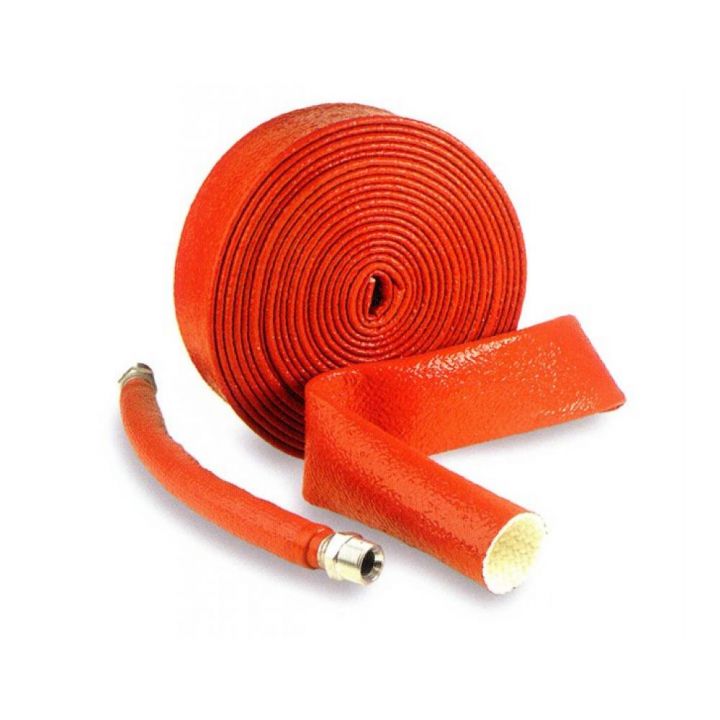

Firesleeve is a flame resistant sheath that protects the hose from extreme temperature conditions. Firesleeve easily slides over hoses and readily expands over fitting. When fitting the fire sleeve to hose assemblies with reusable or crimped fittings, a fire sleeve clamp must be used.
Certification:
- UL 1441 Certified
- VW1 Flame Test Certified
- MSHA Certified for use in underground mines
- SAE AS1072E
- GL-Germanischer Lloyd Certified for 800 °C for 30 min.
- BS EN 373 Molten Splash Tested
- BS EN 388 Abrasion Tested
- BS EN ISO 6940 Flame Resistance Tested
- BS EN ISO 6530 Oil Resistance Tested
- BS 2576 Tensile Strength Tested
- DIN 54837/5510-2 Rail Vehicle
- DIN 5659-2/5510-2 Rail Vehicle Certified for Toxicity
- MIL-C-24576A
- PJA and P96 Thermal Conductivity
Braided fiberglass sleeve with orange, bonded and seamless silicone rubber cover
- Conforms to SAE Aerospace Standard 1072A Type 2A
Temperature Range ............. -54 °C up to +260 °C
