8638-08-08

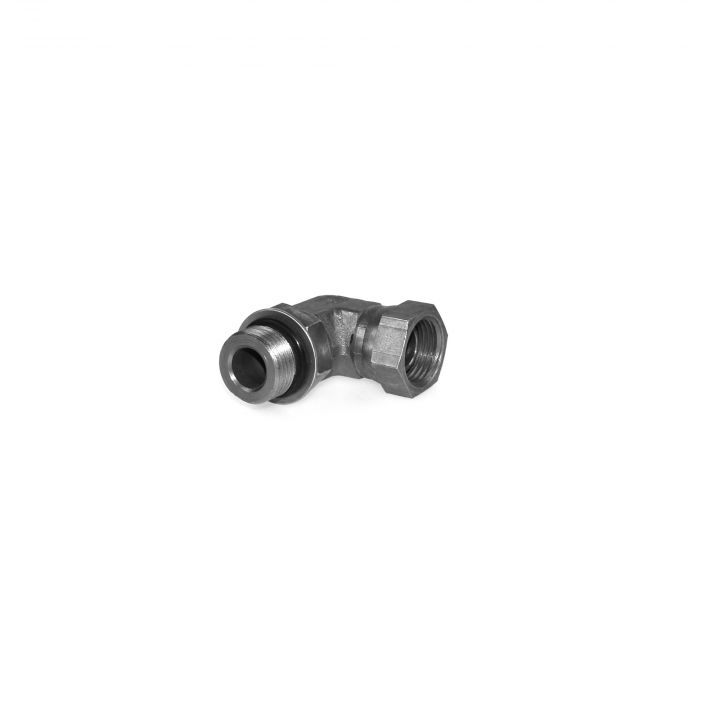

Swivel male 90° elbow - Male UN / UNF thread O-ring (ISO 11926) / NPSM Female swivel end (SAE J516)
- Fast order processing
- All products in stock
- 24/7 Support
- Questions? Call +31(0)10 - 479 15 11
More information about 8638-08-08
- Partnumber
- 8638-08-08
- Manufacturer
- Parker Hannifin
- Crossreference Parker
- 2507-8-8
- Material
- Steel, Cr(VI)-free
- Connection Size
- 3/4-16 UNF Male
- Connection Size II
- 1/2-14 NPSM Female swivel
- Shape
- Swivel male 90° elbow - Male UN/UNF thread O-ring (ISO 11926) / NPSM Female swivel end (SAE J516)
- Working Pressure (BAR)
- 245
- Weight (KG)
- 0.129100
- Country of Manufacture
- Mexico
- Customs Tariff Number
- 73079290
- Box Qty
- 25
- Sales Unit
- Piece
Details of the 8638-08-08
Parker's Pipe Fitting and Port Adapter product line offers a wide range of thread types including NPT, NPTF, NPSM, BSPT, BSPP, SAE O-ring Boss (ORB), ISO 6149 and Metric. All fittings and adapters in this product line meet or exceed industry specifications.
Markets:
- Construction
- Military Ground Systems
- Aerial Lift
- Agriculture
- Material Handling
- Military Marine
- Machine Tool
- Transportation
Features/Benefits:
- Tapered thread fittings offers a compact size for efficiency and have a high temperature tolerance.
- Straight thread fittings have unlimited reusability, an elastomeric seal and no thread sealant is needed for installation.
- Steel fittings substantially exceeded the SAE corrosion requirements of 72 hours without red rust, lasting up to 1,000 as found by an independent test facility.
- Available in steel, stainless steel and brass in sizes 1/8” through 2” with working pressures up to 7500 psi.
Applications:
- Hydraulic fluid and gas handling connections
