811-16

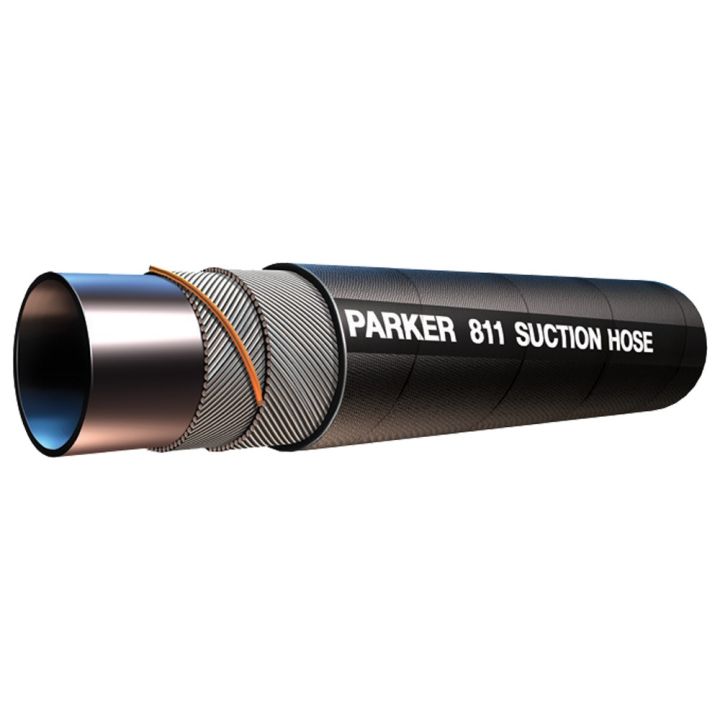

811 - Medium-Pressure No-Skive Suction and Return Line - SAE 100R4
- Fast order processing
- All products in stock
- 24/7 Support
- Questions? Call +31(0)10 - 479 15 11
More information about 811-16
- Partnumber
- 811-16
- Manufacturer
- Parker Hannifin
- Crossreference Parker
- 811-16
- Hose Cover Material
- Oil and weather resistant synthetic rubber
- Reinforcement Type
- Two textile braids, with wire spiraled throughout the textile reinforcement to prevent collapse under vacuum
- Tube Type
- Synthetic rubber
- Working Pressure (BAR)
- 17
- Working Temperature
- -40 °C up to +100 °C
- Bending radius
- 75
- Hose I.D. (DN)
- -25
- Hose I.D. (inch)
- 1"
- Hose I.D. (mm)
- 25.4
- Weight (KG)
- 0.960000
- Customs Tariff Number
- 40094100
- Country of Manufacture
- TR
- Sales Unit
- Meter
Details of the 811-16
Parker's 811 hose is a suction and return line hose that has a working pressure range of 300-62 PSI which is designed for high temperature applications. The 811 hose is designed, built, and tested to meet SAE 100R4 performance specifications. Sizes range from ¾” to 2-½” in diameter to fit the requirements of various markets.
Markets:
• Transportation
• RV & Bus
• Military
• Construction
• Agriculture
• Grounds & Building Maintenance
• Forestry
• Railroad
• Utility Equipment
• Personnel Lift Equipment
• Machine Tool
• Oil Field Service
• Waste & Refuse
• Material Handling
• Marine
• Paving & Road Maintenance
• Ground Support Equipment
• Industrial
• Mining
Features/Benefits:
• 300-62 PSI working pressure in different sizes
• Half SAE bend radius for ease of installation and low force to flex
• SAE 100R4, J1942 / USCG HF certifications
• Oil and weather-resistant synthetic rubber cover
Applications:
• Petroleum base hydraulic fluids and lubricating oils
Compatible Fittings:
• 48 series fittings
