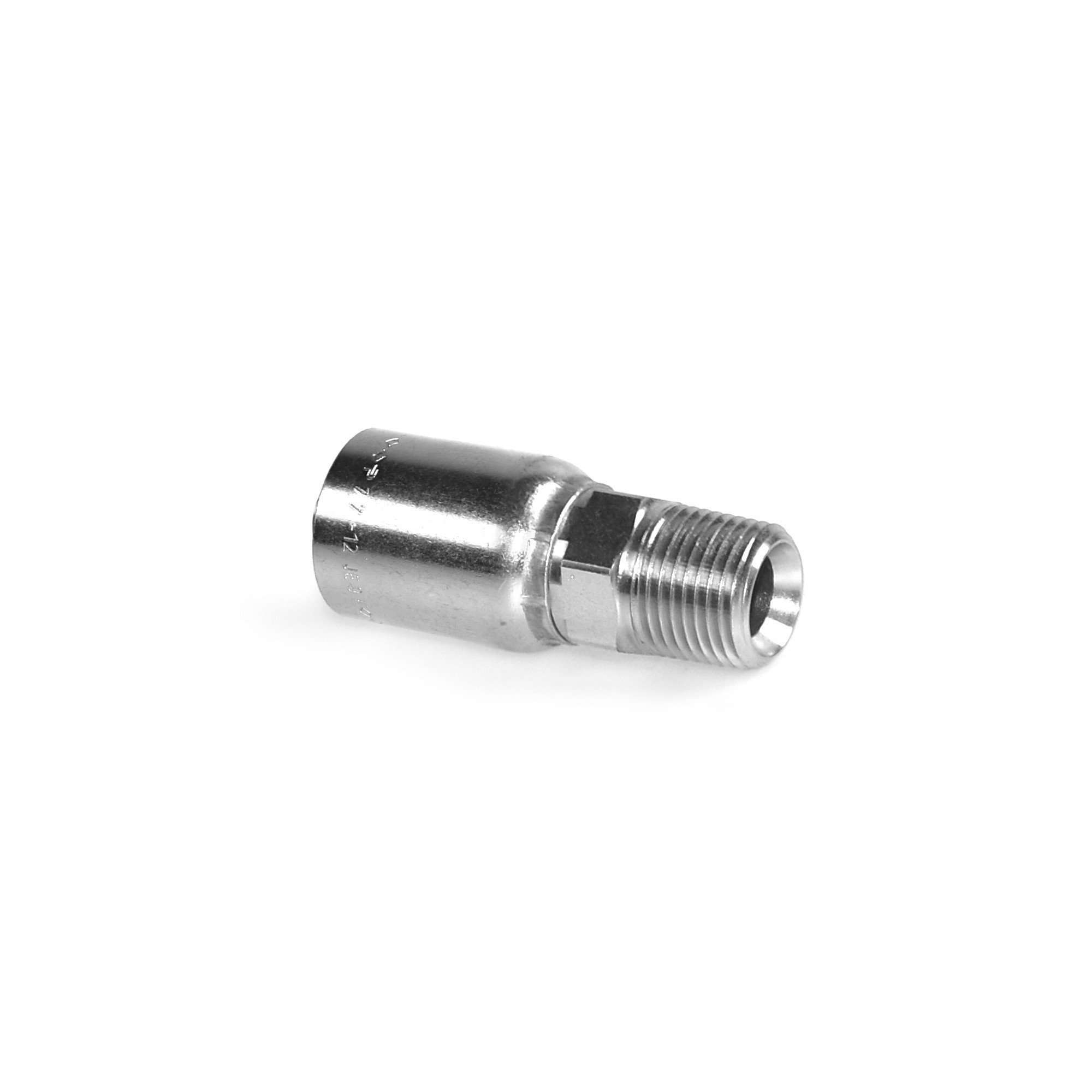

Crimp fitting - 77 series - 3/4-14 NPT male 60° cone (AGN), stainless steel
Login to see prices and stocks
Ordered before 3pm, shipped today
  • Fast order processing
  • All products in stock
  • 24/7 Support
  • Questions? Call +31(0)10 - 479 15 11

More information about 77250-12-12RVS

Partnumber
77250-12-12RVS
Manufacturer
Parker Hannifin
Partnumber Parker
10177-12-12C
Fitting Series
77 Series
Material
Stainless Steel 1.4571
Connection
3/4-14 NPTF Male 60° Cone (AGN)
Version
Straight
Shape
Crimp Fitting - NPT Male 60° cone (AGN)
Hose I.D. (DN)
-19
Hose I.D. (inch)
3/4"
Hose I.D. (mm)
19.1
Weight (KG)
100.000000
Sales Unit
Piece

Details of the 77250-12-12RVS

Crimp-style 77 Series hydraulic hose fittings from Parker Hannifin are cost-effective, permanent, bite-the-wire-style fittings for high-pressure applications. Designed for use with Parkrimp crimpers, 77 series fittings require less push-on force and are easy to assemble. Their compact, one-piece construction delivers better value, flow, and reduced heat and pressure loss, as well as reduced complexity. Compatible with a wide range of constant working pressure hoses, 77 Series fittings are engineered for efficiency, safety, and performance. When paired with Parker’s No-Skive hose, 77 Series fittings can be assembled without removing the outer hose cover. Available in multiple materials and a wide assortment of end configurations, 77 series fittings are offered in sizes from ¼ inch to 2 inches.

Markets:

  • Military
  • Construction
  • Forestry
  • Oil Field Service
  • Industrial
  • Mining

Features/Benefits:

  • Metric hex
  • Easy push on force
  • Multiple materials available, such as steel and stainless steel
  • Wide range of end configurations
  • One piece reduces complexity and leakage path
  • No-Skive technology offers easy, efficient, and safe production processes

Applications:

Petroleum base hydraulic fluids and lubricating oils

Compatible Hoses:

  • 387 (-20 through -32 only)
  • 487 (-20 through -32 only)
  • 787 (-8 through -32 only)
  • 797 (-8 through -32 only)

Downloads 1 of the 77250-12-12RVS
