71-3C4-4F

71 Serie Coupler
Login to see prices and stocks
Ordered before 3pm, shipped today
  • Fast order processing
  • All products in stock
  • 24/7 Support
  • Questions? Call +31(0)10 - 479 15 11

More information about 71-3C4-4F

Partnumber
71-3C4-4F
Weight (KG)
0.176000
Brand
Snap-Tite
Manufacturer
Parker Hannifin
Crossreference Parker
71-3C4-4F
Connection Size
1/4-18 NPT Female
Series
71 Series
Seals
Nitrile
Material
Steel, Cr(VI)-free
Customs Tariff Number
84818073
Box Qty
10
Country of Manufacture
Sweden
Sales Unit
Piece

Details of the 71-3C4-4F

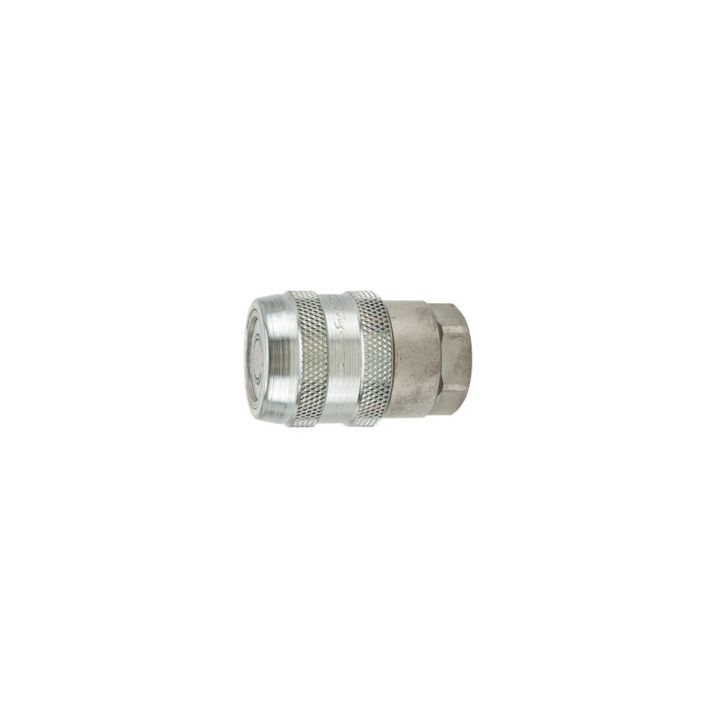

Snap-tite 71 Series Couplers (hydraulic) up to 10,000 psi connect with Snap-tite 71 Series Nipples.
These are double shut-off, non-spill, push to connect quick couplings for high pressure applications. Couplers and nipples are available in a wide range of sizes up to 2 inch with material options including steel, 316 stainless steel, or high pressure stainless steel.

Note: The 71-3 style couplers and nipples are interchangeable with the previous Snap-tite design couplers and nipples in sizes 3/8", 1/2", and 3/4". Old style 1" couplers and nipples (71-2C16 and 71-2N16) are not interchangeable with the 71-3 design.

Technical Characteristics:

  • Sizes: 1/4” – 2”
  • Materials: Steel, 316 Stainless Steel, High Pressure Stainless Steel
  • Port Ends: Female NPTF, Female SAE
  • Seal Options: Nitrile, Fluorocarbon, Ethylene Propylene
  • Other Coupler options include: Sleeve Lock

Markets:

  • Industrial
  • Oil and Gas
  • Construction

Features/Benefits:

  • Push-to-connect operation makes connection easy
  • Corrosion resistant 316 stainless steel and high pressure stainless steel material options for demanding applications
  • Non-spill valves minimize fluid loss when disconnecting to reduce environmental contamination and avoid safety hazards caused by spillage.
  • Flush face valves minimize the amount of air that can enter the system when connecting fluid lines

Applications:

  • In-plant equipment
  • Oil exploration and production
  • Construction Equipment
