580N-08

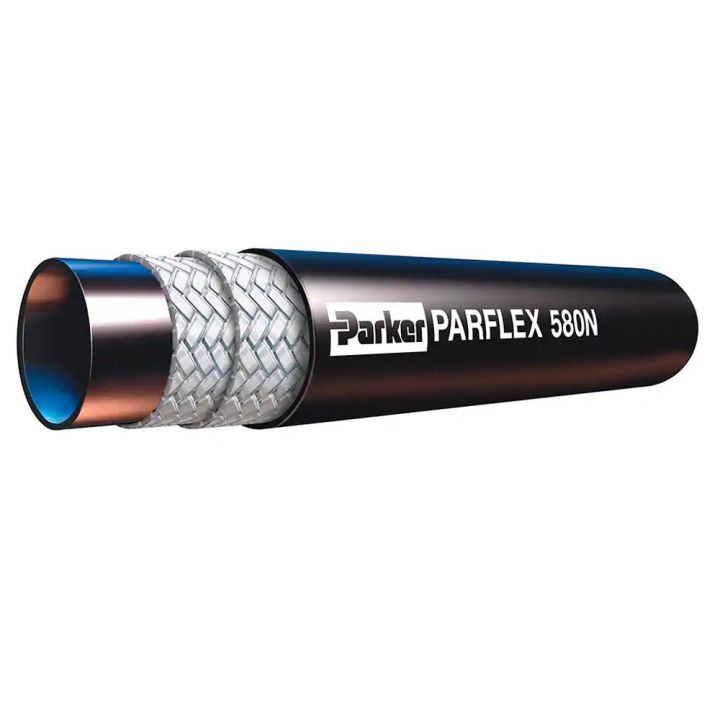

580N - Standard hydraulic hose ISO 3949 Type R8 / DIN EN 855 Type R8
- Fast order processing
- All products in stock
- 24/7 Support
- Questions? Call +31(0)10 - 479 15 11
More information about 580N-08
- Partnumber
- 580N-08
- Manufacturer
- Parker Hannifin
- Brand
- Parker
- Crossreference Parker
- 580N-8
- Hose Cover Material
- Polyurethane, pinpricked
- Reinforcement Type
- Multiple braided layers of high tensile synthetic fibre
- Tube Type
- Polyamide
- Working Pressure (BAR)
- 240
- Bending radius
- 102
- Hose I.D. (DN)
- -12
- Hose I.D. (inch)
- 1/2"
- Hose I.D. (mm)
- 12.7
- Working Temperature
- -40°C up to +100°C for petroleum or synthetic hydraulic fluids
- Customs Tariff Number
- 39173100
- Fitting Series
- 56 Series
- Color
- Black
- Weight (KG)
- 0.150000
- Country of Manufacture
- France
- Sales Unit
- Meter
Details of the 580N-08
Main features:
- Excellent abrasion resistance
- Small bend radii
- Low weight
- Excellent chemical resistance due to polyamide core tube
Applications:
High pressure service for general industrial and mobile hydraulic applications as well as with gases. Usable for a wide variety of fluids due to the polyamide core tube.
