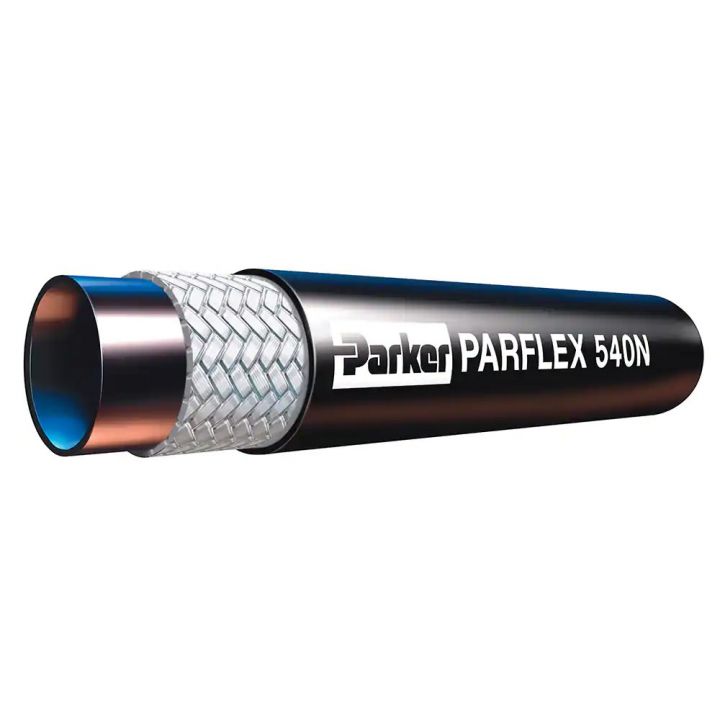

540N - Medium pressure hose ISO 3949 Type R7 / DIN EN 855 Type R7
- Fast order processing
- All products in stock
- 24/7 Support
- Questions? Call +31(0)10 - 479 15 11
More information about 540N-8
- Partnumber
- 540N-8
- Manufacturer
- Parker Hannifin
- Brand
- Parker
- Crossreference Parker
- 540N-8
- Hose Cover Material
- Polyurethane, pinpricked
- Reinforcement Type
- One braided layer of high tensile synthetic fibre
- Tube Type
- Polyamide
- Working Pressure (BAR)
- 140
- Bending radius
- 76
- Hose I.D. (DN)
- -12
- Hose I.D. (inch)
- 1/2"
- Hose I.D. (mm)
- 12.7
- Working Temperature
- -40°C up to +100°C
- Customs Tariff Number
- 39173100
- Fitting Series
- 56 Series
- Color
- Black
- Weight (KG)
- 0.210000
- Country of Manufacture
- France
- Sales Unit
- Meter
Details of the 540N-8
Main features:
- High abrasion resistance
- Small bend radii
- Low weight
- Excellent chemical resistance due to polyamide core tube
Applications:
Medium pressure service for general industrial and mobile hydraulic applications, especially when an improved chemical resistance is required with some hydraulic/chemical fluids.
