4010-03P

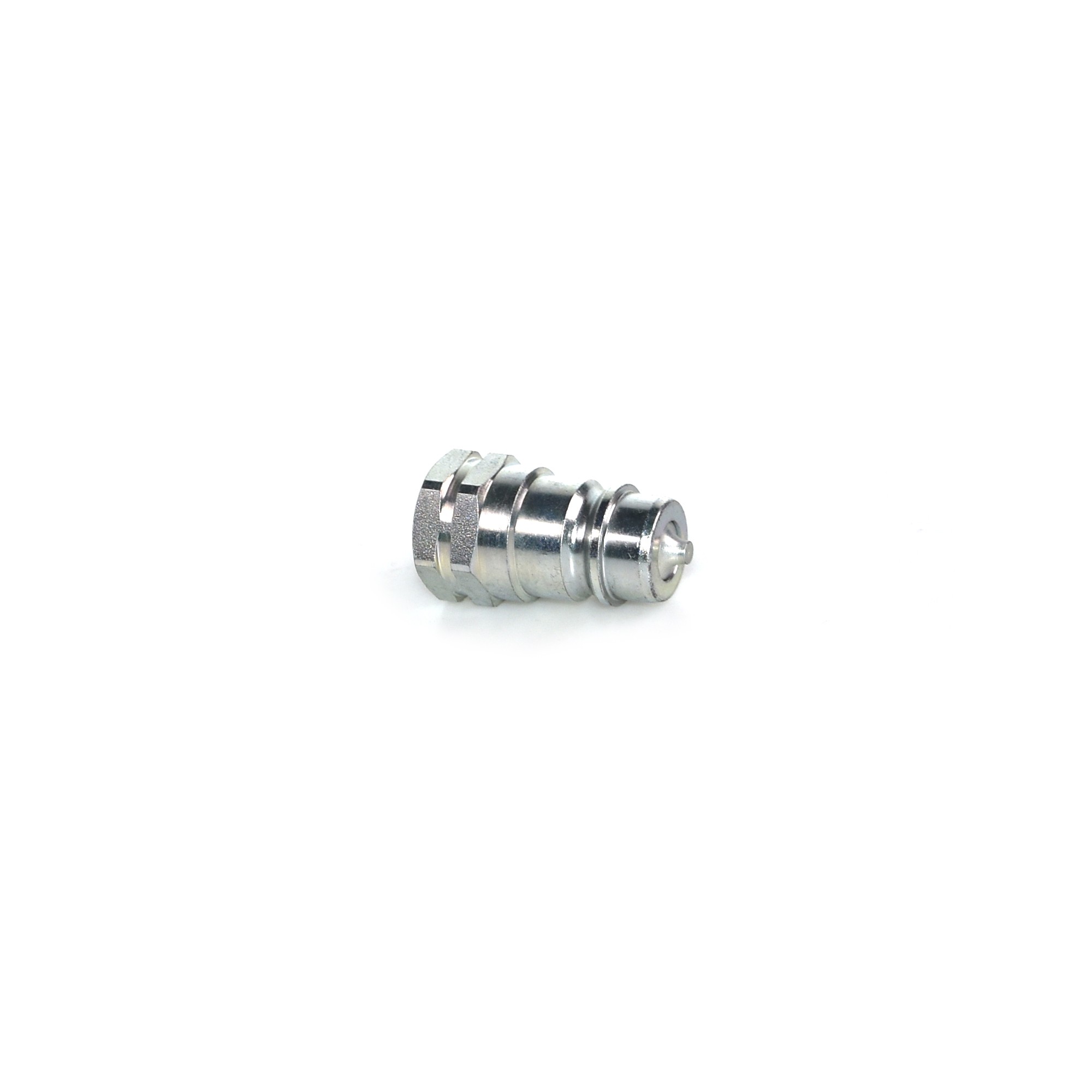

4000 Serie Plug, 3/8-18 NPTF Female Thread
Login to see prices and stocks
Ordered before 3pm, shipped today
  • Fast order processing
  • All products in stock
  • 24/7 Support
  • Questions? Call +31(0)10 - 479 15 11

More information about 4010-03P

Partnumber
4010-03P
Weight (KG)
0.077500
Brand
Parker
Manufacturer
Parker Hannifin
Crossreference Parker
4010-3P
Connection Size
3/8-18 NPT Female
Working Pressure (BAR)
200
Working Temperature
-40°C up to +110°C
Valve Type
Poppet
Series
4000 Series
Material
Steel, Cr(VI)-free
Customs Tariff Number
84818073
Box Qty
10
Country of Manufacture
United States
Sales Unit
Piece

Details of the 4010-03P

4000 Series Couplers (hydraulic) 3000 psi, connect with 4000 Series Nipples and 1/2"" 8010 Series Nipples (ISO 5675, Pioneer male tips).
Parker's 4000 Series are double shut-off quick couplings with poppet or ball valve options. Couplers have a manual sleeve. Push-pull breakaway sleeve is only available on 1/4" body size with 9/16 - 18 ORB thread, part number 4050P-T6.

Technical Characteristics:

  • Sizes: 1/4” – 1”
  • Material: Steel
  • Port Ends: Female NPTF, Female ORB, Male ORB (1/4" size), Female BSPP
  • Seal Options: Nitrile, EPR, Fluorocarbon, Neoprene

Markets:

  • Agriculture
  • Mobile Equipment
  • Construction
  • Snow removal

Features/Benefits:

  • Proven design for rugged applications
  • Poppet or ball valve option
  • Critical parts are hardened for durability
  • 1/2" size globally connects with Pioneer universal male tips (nipples) complying to ISO 5675

Applications:

  • Tractors and agricultural equipment
  • Hydraulic loaders
  • Add-on hydraulic circuits
  • Hydraulic tools
  • Snow plow attachments
