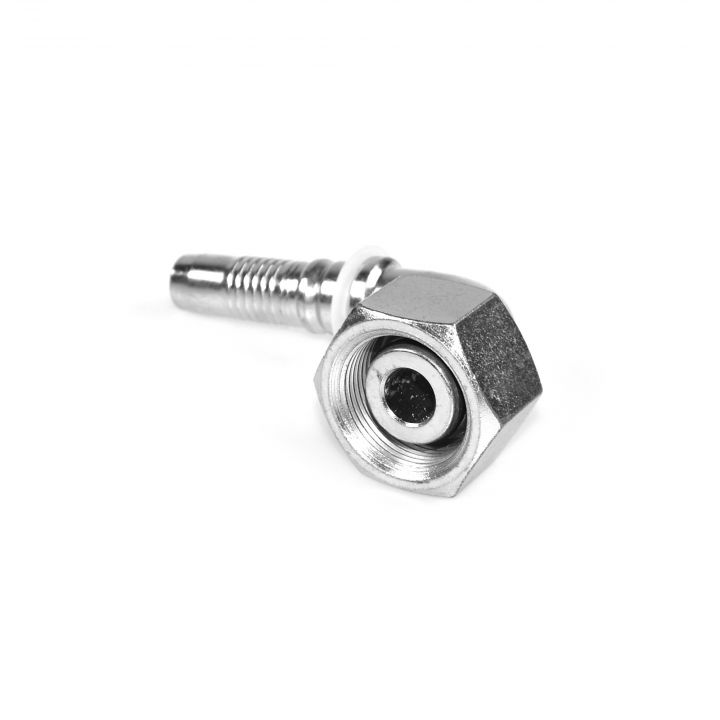

CR. FITT. METR. SWIVEL 90° ST/ST
Login to see prices and stocks
Ordered before 3pm, shipped today
  • Fast order processing
  • All products in stock
  • 24/7 Support
  • Questions? Call +31(0)10 - 479 15 11

More information about 30996-36-16RVS

Partnumber
30996-36-16RVS
Fitting Series
30 Series
Material
Stainless Steel 316L
Connection
25S - M36×2.0 Metric Swivel 24° Cone Heavy (DKOS)
Version
90 Degrees
Shape
Crimp Fitting - Metric Swivel 90° Elbow with O-Ring 24° cone (DKOS)
Hose I.D. (DN)
-25
Hose I.D. (inch)
1"
Hose I.D. (mm)
25.0
Weight (KG)
1.000000
Customs Tariff Number
73269098
Country of Manufacture
Germany
Sales Unit
Piece

Details of the 30996-36-16RVS

Interlock fittings are designed as part of a match system with our hose range. For applications where not only the highest pressure standards are required but also a strong connection between hose and fitting. Interlok fittings create the strongest connection between hose and fitting for high pulsating pressure and mechnically stressful enviroments.

Markets:

  • Construction Equipment
  • Transportation
  • Forestry
  • Agriculture

Features / Benefits:

Matched hose and fitting system guarantees an approved and safe combination and the highest quality and safety combined with the longest service life of the final product to the end-users.

Applications:

  • All construction equipment machines
  • Agriculture and forestry machines
  • General high pressure hydraulic applications

High pressure Interlock fittings 30 series are compatible with the following hoses:

  • H29
  • H29TC
  • H29ST
  • R42
  • R42TC
  • R42ST

Downloads 2 of the 30996-36-16RVS
