2619-08-08

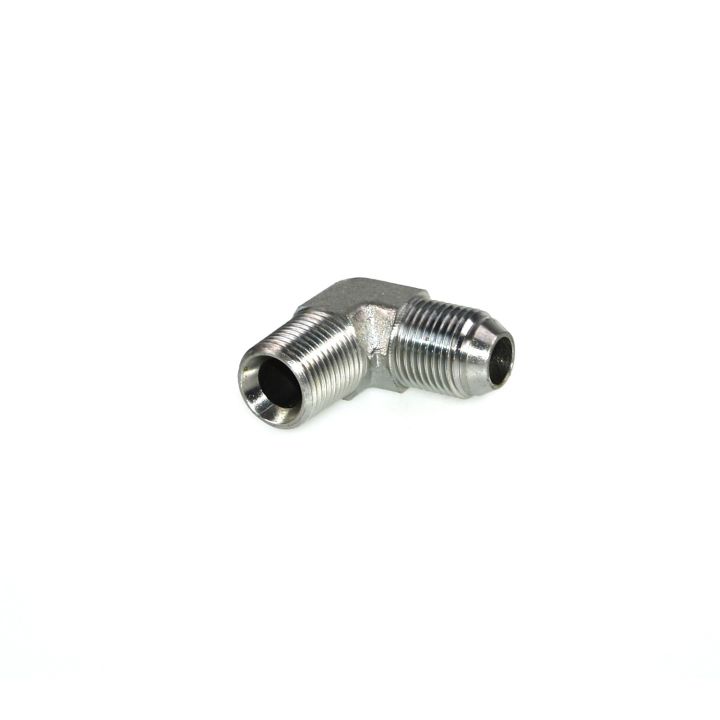

Male elbow - JIS BSPP 60° cone adapters (JIS B8363) / Male BSPT thread (ISO 7)
- Fast order processing
- All products in stock
- 24/7 Support
- Questions? Call +31(0)10 - 479 15 11
More information about 2619-08-08
- Partnumber
- 2619-08-08
- Manufacturer
- Parker Hannifin
- Crossreference Parker
- 8C3T4S
- Material
- Steel, Cr(VI)-free
- Connection Size
- 1/2 JIS BSPP Male
- Connection Size II
- 1/2 BSPT Male
- Shape
- Male elbow - JIS BSPP 60° cone adapters (JIS B8363) / Male BSPT thread (ISO 7)
- Working Pressure (BAR)
- 200
- Weight (KG)
- 0.142100
- Country of Manufacture
- United States
- Customs Tariff Number
- 73079290
- Box Qty
- 10
- Sales Unit
- Piece
Details of the 2619-08-08
Parker's Pipe Fitting and Port Adapter product line offers a wide range of thread types including NPT, NPTF, NPSM, BSPT, BSPP, SAE O-ring Boss (ORB), ISO 6149 and Metric. All fittings and adapters in this product line meet or exceed industry specifications.
Markets:
- Construction
- Military Ground Systems
- Aerial Lift
- Agriculture
- Material Handling
- Military Marine
- Machine Tool
- Transportation
Features/Benefits:
- Tapered thread fittings offers a compact size for efficiency and have a high temperature tolerance.
- Straight thread fittings have unlimited reusability, an elastomeric seal and no thread sealant is needed for installation.
- Steel fittings substantially exceeded the SAE corrosion requirements of 72 hours without red rust, lasting up to 1,000 as found by an independent test facility.
- Available in steel, stainless steel and brass in sizes 1/8” through 2” with working pressures up to 7500 psi.
Applications:
- Hydraulic fluid and gas handling connections
