2245N-04V00

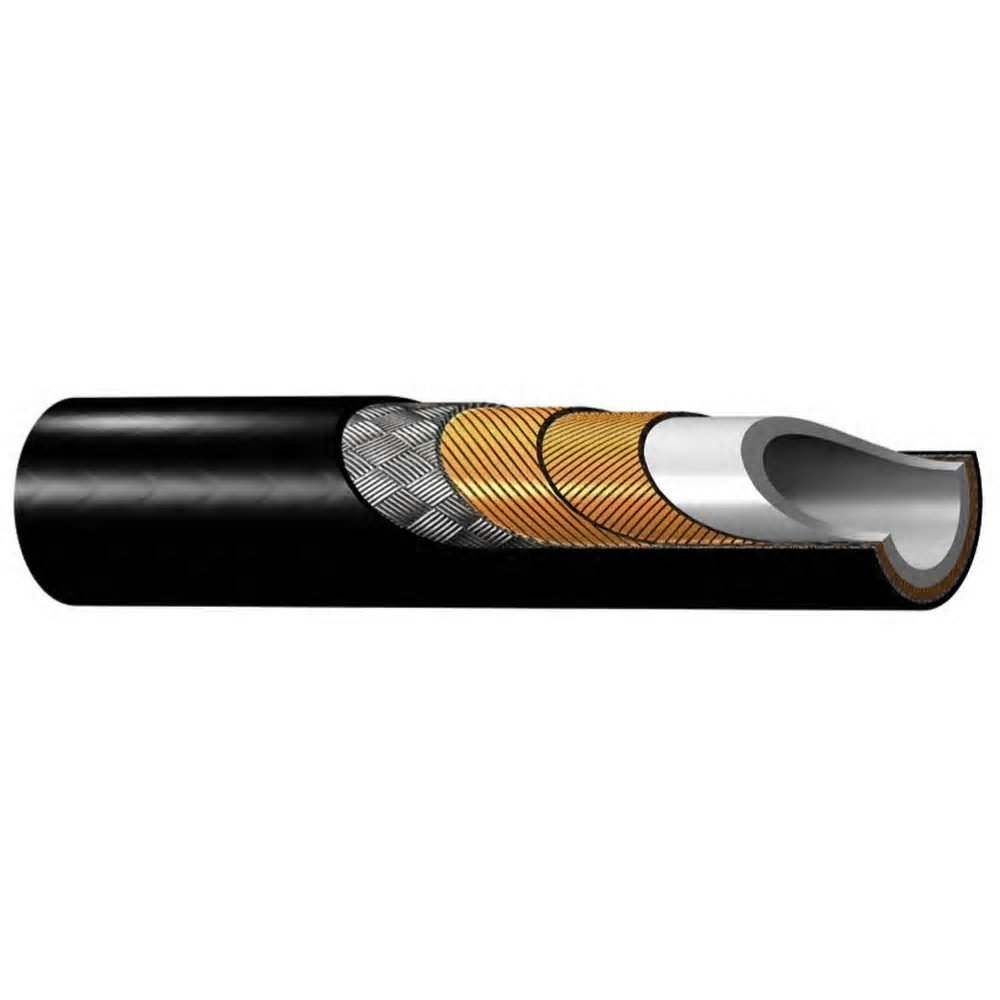

2245N - High pressure hose Performance exceeds SAE100R9
- Fast order processing
- All products in stock
- 24/7 Support
- Questions? Call +31(0)10 - 479 15 11
More information about 2245N-04V00
- Partnumber
- 2245N-04V00
- Manufacturer
- Parker Hannifin
- Brand
- Parker
- Crossreference Parker
- 2245N-04V00
- Hose Cover Material
- Polyurethane
- Reinforcement Type
- Two spiral layers of high tensile steel wire, one braided layer of steel wire
- Tube Type
- Polyurethane
- Working Pressure (BAR)
- 450
- Bending radius
- 70
- Hose I.D. (DN)
- -6
- Hose I.D. (inch)
- 1/4"
- Hose I.D. (mm)
- 6.4
- Working Temperature
- -40°C up to +100°C (short term +120°C) for petroleum or synthetic hydraulic
- Customs Tariff Number
- 39173100
- Fitting Series
- NX Series
- Color
- Black
- Weight (KG)
- 0.253700
- Country of Manufacture
- France
- Sales Unit
- Meter
Details of the 2245N-04V00
Main features:
- High working pressures for large sizes
- Excellent chemical resistance due to polyamide core tube
Applications:
High pressure service for general industrial and mobile hydraulic applications as well as with gases. Usable for a wide variety of fluids due to the polyamide core tube.
