2245-08-06

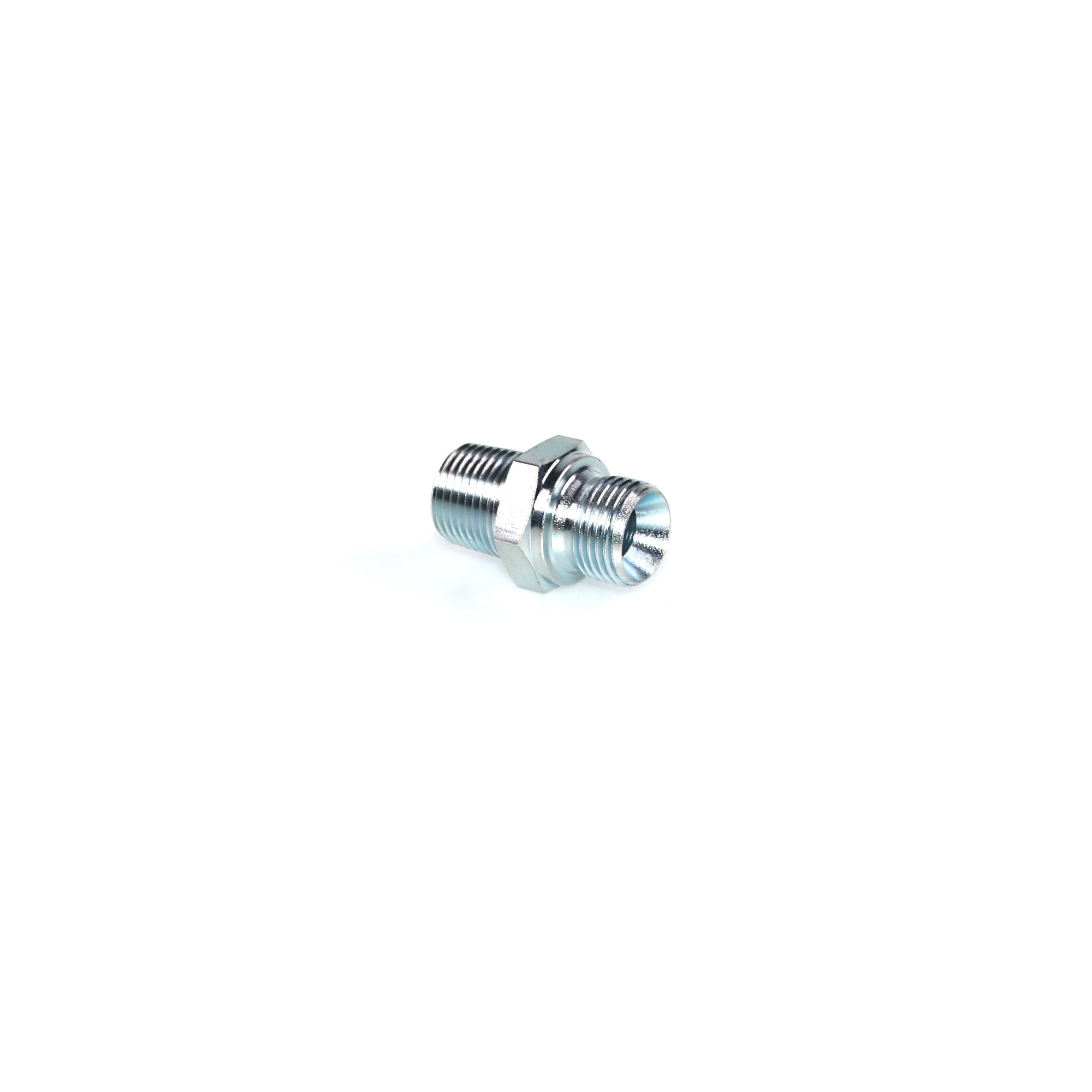

Male stud connector - 1/2 BSPP 60° cone end x 3/8 NPTF cone end, galvanized steel
- Fast order processing
- All products in stock
- 24/7 Support
- Questions? Call +31(0)10 - 479 15 11
More information about 2245-08-06
- Partnumber
- 2245-08-06
- Manufacturer
- Parker Hannifin
- Crossreference Parker
- 8FMK4S
- Material
- Steel, Cr(VI)-free
- Connection Size
- 1/2 BSP Male
- Connection Size II
- 3/8-18 NPT Male
- Shape
- Male stud connector - BSPP 60° Cone end (ISO 8434-6) / Male NPTF thread (SAE J476)
- Sealing
- Metal sealing edge
- Working Pressure (BAR)
- 200
- Weight (KG)
- 0.076000
- Country of Manufacture
- China
- Customs Tariff Number
- 73079910
- Box Qty
- 50
- Sales Unit
- Piece
Details of the 2245-08-06
Parker's Pipe Fitting and Port Adapter product line offers a wide range of thread types including NPT, NPTF, NPSM, BSPT, BSPP, SAE O-ring Boss (ORB), ISO 6149 and Metric. All fittings and adapters in this product line meet or exceed industry specifications.
Markets:
- Construction
- Military Ground Systems
- Aerial Lift
- Agriculture
- Material Handling
- Military Marine
- Machine Tool
- Transportation
Features/Benefits:
- Tapered thread fittings offers a compact size for efficiency and have a high temperature tolerance.
- Straight thread fittings have unlimited reusability, an elastomeric seal and no thread sealant is needed for installation.
- Steel fittings substantially exceeded the SAE corrosion requirements of 72 hours without red rust, lasting up to 1,000 as found by an independent test facility.
- Available in steel, stainless steel and brass in sizes 1/8” through 2” with working pressures up to 7500 psi.
Applications:
- Hydraulic fluid and gas handling connections
