2040H-05V10

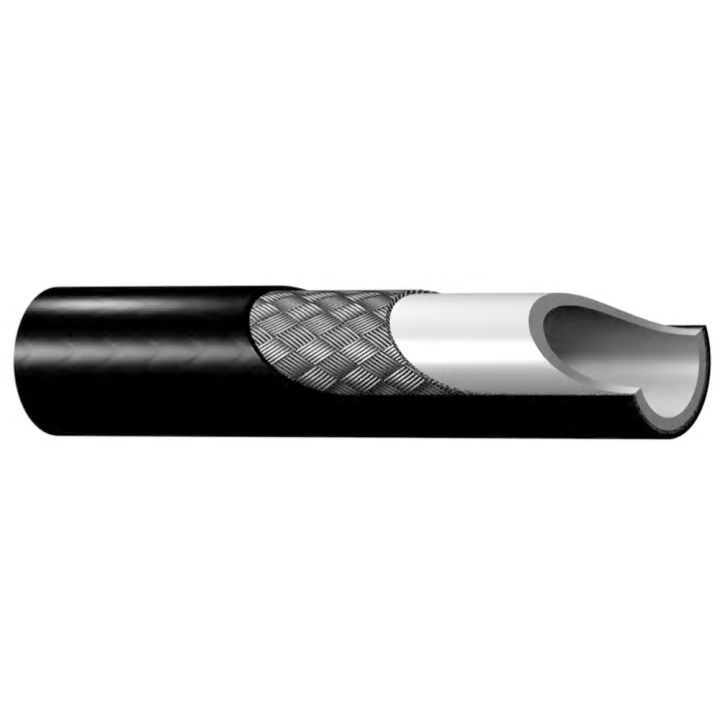

2040H - Standard hydraulic hose
- Fast order processing
- All products in stock
- 24/7 Support
- Questions? Call +31(0)10 - 479 15 11
More information about 2040H-05V10
- Partnumber
- 2040H-05V10
- Manufacturer
- Parker Hannifin
- Brand
- Parker
- Crossreference Parker
- 2040H-05V10
- Hose Cover Material
- Polyurethane
- Reinforcement Type
- One high tensile steel wire braid
- Tube Type
- Polyester elastomer
- Working Pressure (BAR)
- 250
- Bending radius
- 50
- Hose I.D. (DN)
- -8
- Hose I.D. (inch)
- 5/16"
- Hose I.D. (mm)
- 7.9
- Working Temperature
- -40°C up to +100°C for petroleum, max. 57°C for synthetic hydraulic fluids
- Customs Tariff Number
- 39173100
- Fitting Series
- 56/PX Series
- Color
- Black
- Weight (KG)
- 0.210000
- Country of Manufacture
- France
- Sales Unit
- Meter
Details of the 2040H-05V10
Main features:
- Excellent abrasion resistance
- Small bend radii
- Steel wire pressure reinforcement
- Excellent flexibility
Applications:
High pressure service for general industrial and mobile hydraulic applications.
