0797TC-24

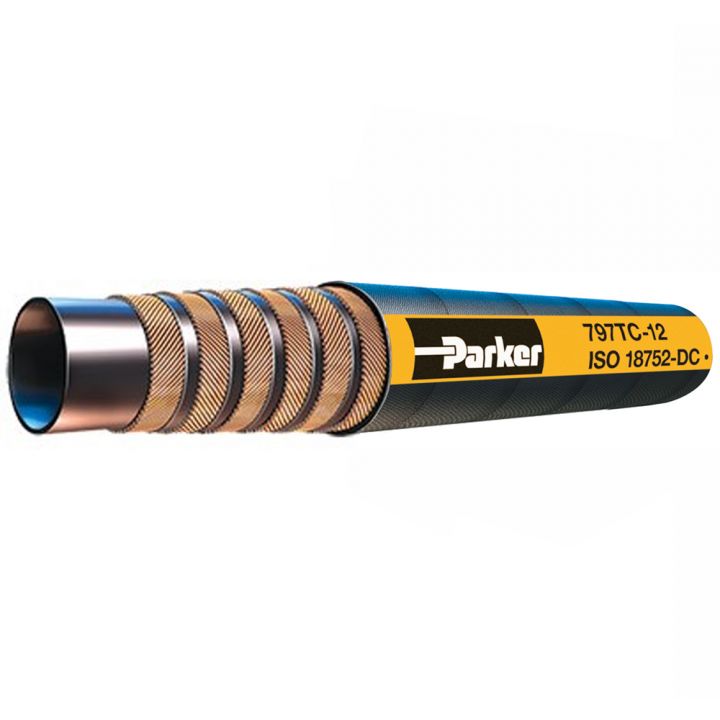

Parker's 797 hose, within the GlobalCore product line, was designed to deliver consistency and reliability with a constant working pressure of 6000 PSI in all sizes. The 797 hose is made with Compact Spiral technology making it light, durable, and easily bent making installation easier and quicker. The 797 hose is designed, built and tested to the ISO 18752 performance specifications. Sizes range from ½” to 2” in diameter with different cover options available for various markets.

Markets:

• Military
• Construction
• Forestry
• Oil Field Service
• Industrial
• Mining

Features/Benefits:

• Standard, ToughCover or SuperTough cover options to prevent abrasion
• Half SAE bend radius for ease of installation and low force to flex
• 30% smaller O.D. by area compared to the SAE spiral
• 6,000 PSI constant working pressure in all sizes
• Less hose weight than SAE spiral
• Twice the impulse/life for a longer useful life of the hose
• Flex impulse tested to provide a superior hose in both performance and service life

Applications:

• Petroleum base hydraulic fluids and lubricating oils

Compatible Fittings:

• 77 series fittings
